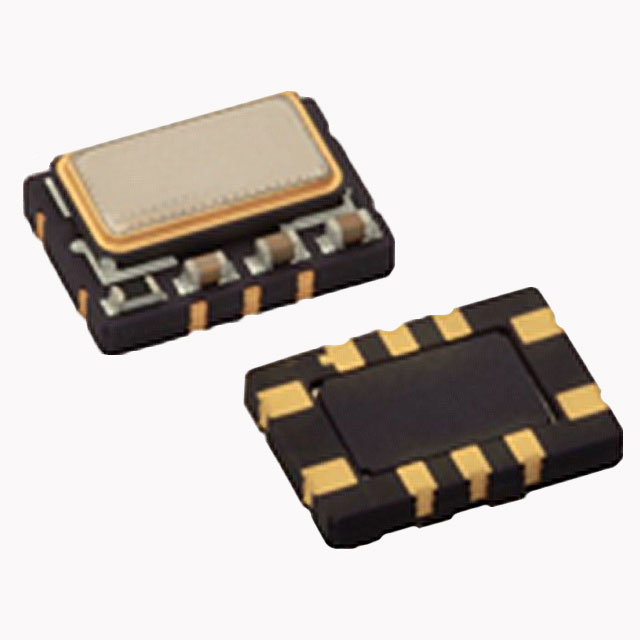

TX257A-D3-0.28-10.000-3
ActiveRaltron Electronics
XTAL OSC TCXO 10MHZ 3.3V CMOS
TX257A-D3-0.28-10.000-3
ActiveRaltron Electronics
XTAL OSC TCXO 10MHZ 3.3V CMOS
Description
General part information
TX257A-D3-0.28-10.000-3
10 MHz TCXO HCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TX257A-D3-0.28-10.000-3 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 10 mA |
| Frequency | 10 MHz |
| Frequency Stability | 280 ppb |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.094 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
