Specification	LS2-110-01-L-D-TR

Connector Type	Non-Gendered, Hermaphroditic, Self Mating
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Latch Holder
Height Above Board	0.25 in
Mounting Type	Through Hole
Number of Positions	20
Number of Rows	2
Pitch	0.079 in

LS2-110 Series

Board to Board & Mezzanine Connectors 2.00 mm Locking Hermaphroditic Terminal/Socket Strip

Part	Contact Finish	Number of Rows	Features	Number of Positions	Contact Finish Thickness	Height Above Board	Mounting Type	Pitch	Connector Type	Contact Finish Thickness (string set options)	Contact Finish Thickness
Samtec Inc. LS2-110-02-L-D-A	Gold	2	Board Guide Latch Holder	20	10 Ąin	0.33 in	Surface Mount	0.079 in	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LS2-110-02-S-D-K-TR	Gold	2	Latch Holder Pick and Place	20	30 µin	0.33 in	Surface Mount	0.079 in	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LS2-110-02-L-D-K-TR	Gold	2	Latch Holder Pick and Place	20	10 Ąin	0.33 in	Surface Mount	0.079 in	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LS2-110-01-SM-D-RA2	Gold	2	Latch Holder	20	30 µin	0.208 in	Right Angle Through Hole	0.079 in	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LS2-110-01-F-D-TR	Gold	2	Latch Holder	20	0	0.25 in	Through Hole	0.079 in	Hermaphroditic Non-Gendered Self Mating	Flash	Flash
Samtec Inc. LS2-110-02-LM-D	Gold	2	Latch Holder	20	10 Ąin	0.33 in	Surface Mount	0.079 in	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LS2-110-02-L-D-K	Gold	2	Latch Holder Pick and Place	20	10 Ąin	0.33 in	Surface Mount	0.079 in	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LS2-110-01-S-D-TR	Gold	2	Latch Holder	20	30 µin	0.25 in	Through Hole	0.079 in	Hermaphroditic Non-Gendered Self Mating
Samtec Inc. LS2-110-01-LM-D	Gold	2	Latch Holder	20	10 Ąin	0.25 in	Through Hole	0.079 in	Hermaphroditic Non-Gendered Self Mating

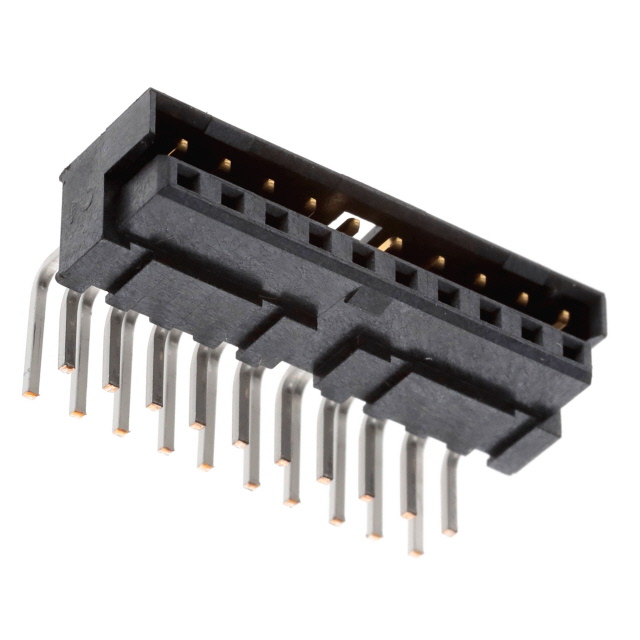

Samtec Inc. LS2-110-01-S-D-RA2	Gold	2	Latch Holder	20	30 µin	0.208 in	Right Angle Through Hole	0.079 in	Hermaphroditic Non-Gendered Self Mating

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

LS2-110-01-L-D-TR | Datasheet
