18280-2PG-315

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	18280-2PG-315	18280-2P Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [custom]	0.17 in, 0.15 in	0.15 - 0.17 in
Cable Opening [custom]	3.81 mm, 4.32 mm	3.81 - 4.32 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 VAC	600 VAC

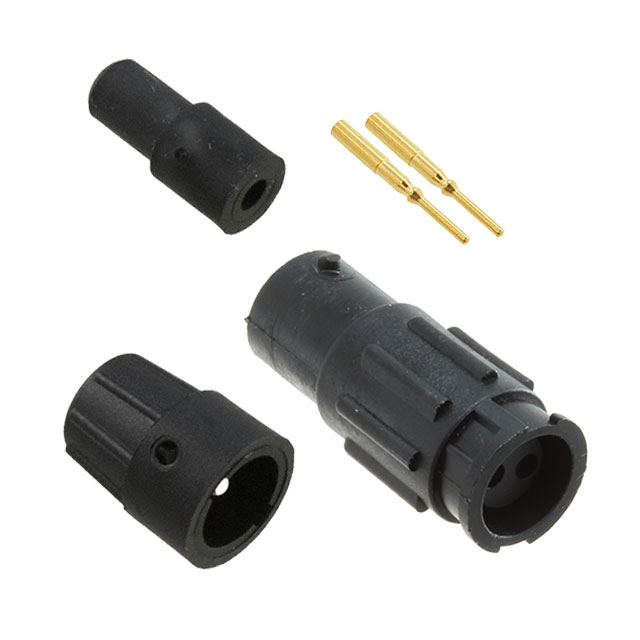

CONN RCPT MALE 2POS GOLD CRIMP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Finish - Mating	Ingress Protection	Termination	Fastening Type	Voltage Rating	Contact Material	Orientation	Current Rating (Amps)	Shielding	Applications	Color	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Number of Positions	Primary Material	Backshell Material, Plating	Connector Type	Material Flammability Rating	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 18280-2PG-318	85 °C	-40 °C	Backshell	Gold	IP67 - Dust Tight, Waterproof	Crimp	Bayonet Lock	600 VAC	Copper Alloy	Keyed	7.5 A	Unshielded	Data, Industrial, Instrumentation, Medical	Black	4.57 mm	0.18 in	0.2 in	5.08 mm	2	Plastic	Thermoplastic	Male Pins, Receptacle	UL94 HB	Free Hanging (In-Line)
Conxall/Switchcraft 18280-2PG-311	85 °C	-40 °C	Backshell	Gold	IP67 - Dust Tight, Waterproof	Crimp	Bayonet Lock	600 VAC	Copper Alloy	Keyed	7.5 A	Unshielded	Data, Industrial, Instrumentation, Medical	Black					2	Plastic	Thermoplastic	Male Pins, Receptacle	UL94 HB	Free Hanging (In-Line)	2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 18280-2PG-315	85 °C	-40 °C	Backshell	Gold	IP67 - Dust Tight, Waterproof	Crimp	Bayonet Lock	600 VAC	Copper Alloy	Keyed	7.5 A	Unshielded	Data, Industrial, Instrumentation, Medical	Black					2	Plastic	Thermoplastic	Male Pins, Receptacle	UL94 HB	Free Hanging (In-Line)				0.15 in, 0.17 in	3.81 mm, 4.32 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Crimp
