PE44652
ActivePasternack

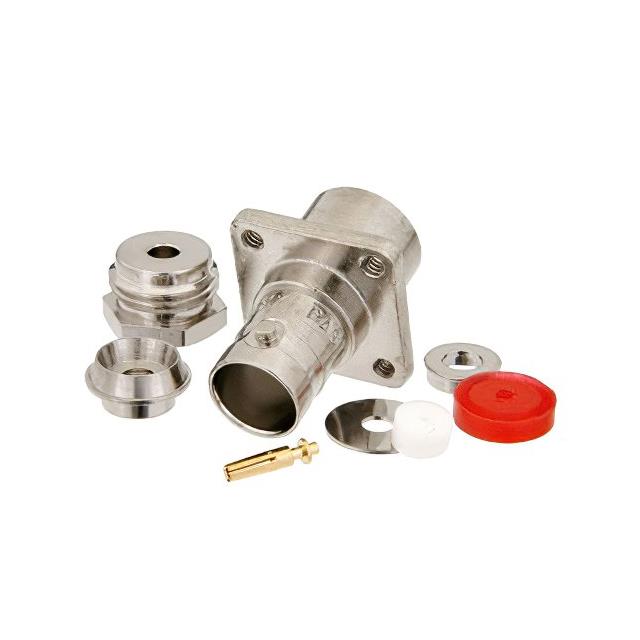

75 OHM BNC FEMALE CONNECTOR CLAM
PE44652
ActivePasternack
75 OHM BNC FEMALE CONNECTOR CLAM
Description
General part information
PE44652
BNC Connector Receptacle, Female Socket 75 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44652 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 187, RG-179 |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Clamp |
