CY15B108QN-40SXIT

Active

Infineon Technologies

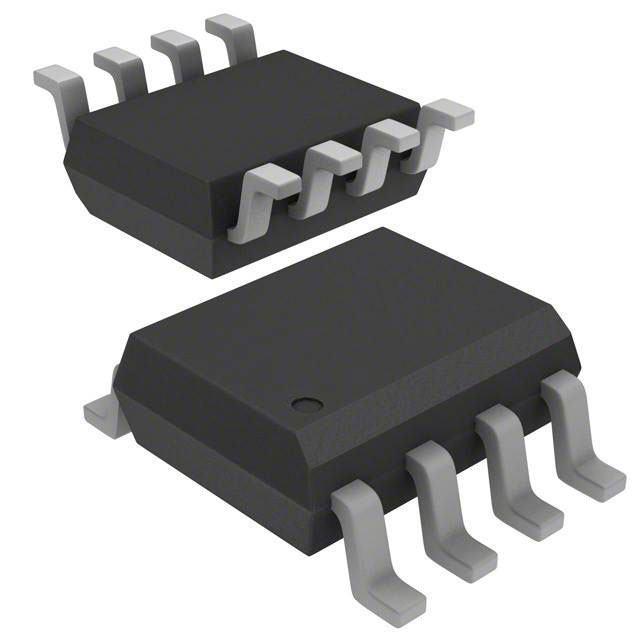

8MB 3.3V INDUSTRIAL 40MHZ SPI EXCELON™ F-RAM IN 8-PIN SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CY15B108QN-40SXIT

Active

Infineon Technologies

8MB 3.3V INDUSTRIAL 40MHZ SPI EXCELON™ F-RAM IN 8-PIN SOIC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY15B108QN-40SXIT

Access Time	9 ns
Clock Frequency	40 MHz
Memory Format	FRAM
Memory Interface	SPI
Memory Organization [custom]	1 M
Memory Organization [custom]	8 bits
Memory Size	1024 KB
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SOIC
Package / Case [x]	0.209 "
Package / Case [y]	5.3 mm
Supplier Device Package	8-SOIC
Technology	FRAM (Ferroelectric RAM)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.8 V

CY15B108 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Memory Interface	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Memory Format	Access Time	Supplier Device Package	Clock Frequency	Memory Type	Package / Case	Memory Organization [custom]	Memory Organization [custom]	Mounting Type	Package / Case [y]	Package / Case [x]
Infineon Technologies CY15B108QN-40LPXIT	3.6 V	1.8 V	1024 KB	SPI	85 °C	-40 °C	FRAM (Ferroelectric RAM)	FRAM	9 ns	8-GQFN (3.23x3.28)	40 MHz	Non-Volatile	8-UQFN	1 M	8 bits	Surface Mount
Infineon Technologies CY15B108QN-40LPXI	3.6 V	1.8 V	1024 KB	SPI	85 °C	-40 °C	FRAM (Ferroelectric RAM)	FRAM		8-GQFN (3.23x3.28)	40 MHz	Non-Volatile	8-UQFN	1 M	8 bits	Surface Mount
Infineon Technologies CY15B108QN-20LPXIT	3.6 V	1.8 V	1024 KB	SPI	85 °C	-40 °C	FRAM (Ferroelectric RAM)	FRAM	20 ns	8-GQFN (3.23x3.28)	20 MHz	Non-Volatile	8-UQFN	1 M	8 bits	Surface Mount
Infineon Technologies CY15B108QI-20LPXI	3.6 V	1.8 V	1024 KB	SPI	85 °C	-40 °C	FRAM (Ferroelectric RAM)	FRAM		8-GQFN (3.23x3.28)	20 MHz	Non-Volatile	8-UQFN	1 M	8 bits	Surface Mount
Infineon Technologies CY15B108QN-20LPXCT	3.6 V	1.8 V	1024 KB	SPI	70 °C	0 °C	FRAM (Ferroelectric RAM)	FRAM	20 ns	8-GQFN (3.23x3.28)	20 MHz	Non-Volatile	8-UQFN	1 M	8 bits	Surface Mount
Infineon Technologies CY15B108QSN-108BKXI	3.6 V	1.8 V	1024 KB	QPI Quad I/O SPI	85 °C	-40 °C	FRAM (Ferroelectric RAM)	FRAM	6.7 ns	24-FBGA (6x8)	108 MHz	Non-Volatile	24-TBGA	1 M	8 bits	Surface Mount
Infineon Technologies CY15B108QN-40SXIT	3.6 V	1.8 V	1024 KB	SPI	85 °C	-40 °C	FRAM (Ferroelectric RAM)	FRAM	9 ns	8-SOIC	40 MHz	Non-Volatile	8-SOIC	1 M	8 bits	Surface Mount	5.3 mm	0.209 "
Infineon Technologies CY15B108QI-20LPXI	3.6 V	1.8 V	1024 KB	SPI	85 °C	-40 °C	FRAM (Ferroelectric RAM)	FRAM		8-GQFN (3.23x3.28)	20 MHz	Non-Volatile	8-UQFN	1 M	8 bits	Surface Mount
Infineon Technologies CY15B108QN-20LPXI	3.6 V	1.8 V	1024 KB	SPI	85 °C	-40 °C	FRAM (Ferroelectric RAM)	FRAM		8-GQFN (3.23x3.28)	20 MHz	Non-Volatile	8-UQFN	1 M	8 bits	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 27.00

Description

General part information

CY15B108 Series

FRAM (Ferroelectric RAM) Memory IC 8Mbit SPI 40 MHz 9 ns 8-SOIC
