HMC1512-TR

Active

Honeywell Aerospace

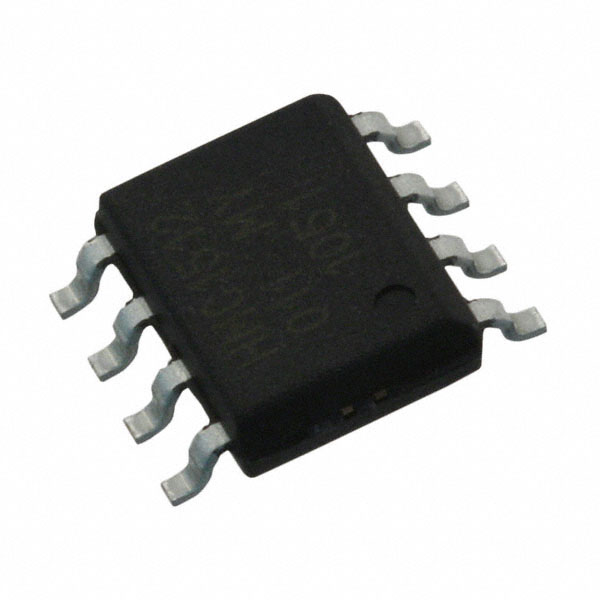

SENSOR ANGLE 180DEG 8MM SMD

Search across all available documentation for this part.

Active

Honeywell Aerospace

SENSOR ANGLE 180DEG 8MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	HMC1512-TR

Actuator Type	External Magnet, Not Included
For Measuring	Linear, Rotary, Angle
Linear Range [Max] [x]	0.31 in
Linear Range [Max] [x]	8 mm
Linear Range [Min] [x]	0 mm
Linear Range [Min] [x]	0 in
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	Wheatstone Bridge
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Resistance	2.8 kOhms
Rotation Angle - Electrical, Mechanical	180 °
Supplier Device Package	8-SOIC
Technology	Magnetoresistive
Termination Style	Gull Wing
Voltage - Supply [Max]	25 V
Voltage - Supply [Min]	1 V

SENSOR ANGLE 180DEG 8MM SMD

Part	For Measuring	Technology	Linear Range [Min] [x]	Linear Range [Max] [x]	Linear Range [Min] [x]	Linear Range [Max] [x]	Actuator Type	Package / Case	Package / Case [y]	Package / Case [x]	Supplier Device Package	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Output	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Rotation Angle - Electrical, Mechanical
Honeywell Aerospace HMC1512-TR	Angle, Linear, Rotary	Magnetoresistive	0 mm	0.31 in	0 in	8 mm	External Magnet, Not Included	8-SOIC	3.9 mm	0.154 in	8-SOIC	Gull Wing	125 °C	-40 °C	2.8 kOhms	Wheatstone Bridge	Surface Mount	25 V	1 V	180 °
