45-2T07.10K0.000
ActiveEAO

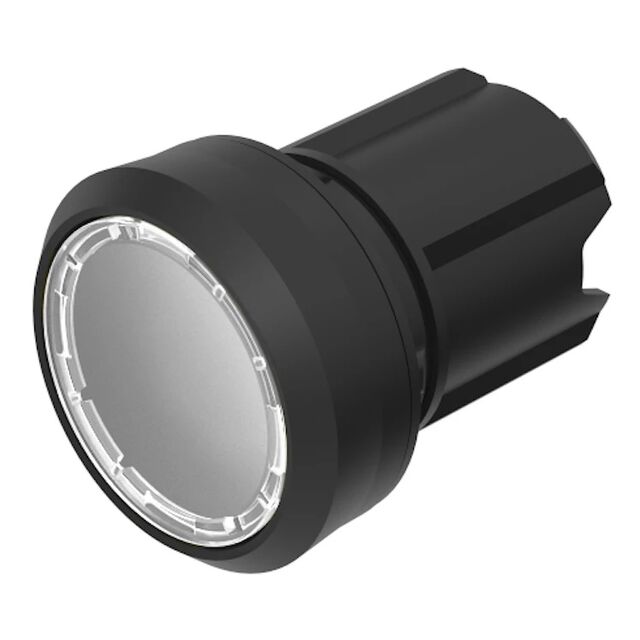

INDICATOR ACTUATOR FRONT ILLUMINATION COLOURLESS TRANSPARENT FRONT/HOUSING PLASTIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
45-2T07.10K0.000
ActiveEAO
INDICATOR ACTUATOR FRONT ILLUMINATION COLOURLESS TRANSPARENT FRONT/HOUSING PLASTIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 45-2T07.10K0.000 | 45-2T07 Series |
|---|---|---|
| Ingress Protection | IP69K, IP67, IP66 | IP69K, IP67, IP66 |
| Lamp Color | White | White, Blue, Yellow, Green, Red |
| Lens Color | Colorless | Colorless, Blue, Yellow, Green, Red |
| Lens Size [diameter] | 29.5 mm | 29.5 mm |
| Lens Transparency | Clear | Clear |
| Panel Cutout Dimensions | 0.88 in | 0.88 in |
| Panel Cutout Dimensions | 22.3 mm | 22.3 mm |
| Panel Cutout Shape | Round | Round |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | LED | LED |
45-2T07 Series
INDICATOR ACTUATOR FRONT ILLUMINATION COLOURLESS TRANSPARENT FRONT/HOUSING PLASTIC
| Part | Panel Cutout Shape | Termination Style | Lens Size [diameter] | Lens Transparency | Panel Cutout Dimensions | Panel Cutout Dimensions | Ingress Protection | Type | Lens Color | Lamp Color |
|---|---|---|---|---|---|---|---|---|---|---|
Round | Screw Terminal | 29.5 mm | Clear | 0.88 in | 22.3 mm | IP66, IP67, IP69K | LED | Colorless | White | |
Round | Screw Terminal | 29.5 mm | Clear | 0.88 in | 22.3 mm | IP66, IP67, IP69K | LED | Blue | Blue | |
Round | Screw Terminal | 29.5 mm | Clear | 0.88 in | 22.3 mm | IP66, IP67, IP69K | LED | Yellow | Yellow | |
Round | Screw Terminal | 29.5 mm | Clear | 0.88 in | 22.3 mm | IP66, IP67, IP69K | LED | Blue | Blue | |
Round | Screw Terminal | 29.5 mm | Clear | 0.88 in | 22.3 mm | IP66, IP67, IP69K | LED | Green | Green | |
Round | Screw Terminal | 29.5 mm | Clear | 0.88 in | 22.3 mm | IP66, IP67, IP69K | LED | Colorless | White | |
Round | Screw Terminal | 29.5 mm | Clear | 0.88 in | 22.3 mm | IP66, IP67, IP69K | LED | Red | Red | |
Round | Screw Terminal | 29.5 mm | Clear | 0.88 in | 22.3 mm | IP66, IP67, IP69K | LED | Yellow | Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
45-2T07 Series
LED Panel Indicator White Clear Screw Terminal
