ITCSN-1100-25-U

Active

1.1, 3:1 HEAVY WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Search across all available documentation for this part.

Active

1.1, 3:1 HEAVY WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Technical Specifications

Parameters and characteristics for this part

Specification	ITCSN-1100-25-U

Color	Black
Features	Weather Resistant, Split Resistant, UV Resistant
Inner Diameter - Recovered [diameter]	9.4 mm
Inner Diameter - Recovered [diameter]	0.37 in
Inner Diameter - Supplied [diameter]	1.1 in
Inner Diameter - Supplied [diameter]	27.94 mm
Length	Enter Number of Feet in Order Quantity
Length	0.062 ', 0.125 ', 0.083 ft
Length	19.05 mm, 38.1 mm, 25.4 mm
Length	0.75 ", 1.5 ", 1 in
Length [x]	4 "
Length [x]	0.333 ft
Length [x]	101.6 mm
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	121 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Spool Size	7.6 m
Spool Size	25 ft
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Semi Rigid

1.1, 3:1 HEAVY WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Length	Length	Length	Length	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Color	Length [x]	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Shelf Life Start	Type	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Features	Material	Spool Size	Spool Size	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]
3M ITCSN-1100-25-U	-55 °C	110 °C	120 Months	Enter Number of Feet in Order Quantity	0.062 ', 0.083 ft, 0.125 '	19.05 mm, 25.4 mm, 38.1 mm	0.75 ", 1 in, 1.5 "	27 °C, 80 °F	10 °C	Black	4 "	0.333 ft	101.6 mm	1.1 in	27.94 mm	121 °C	Date of Manufacture	Tubing, Semi Rigid	1	3	Split Resistant, UV Resistant, Weather Resistant	Polyolefin (PO), Irradiated	7.6 m	25 ft	9.4 mm	0.37 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

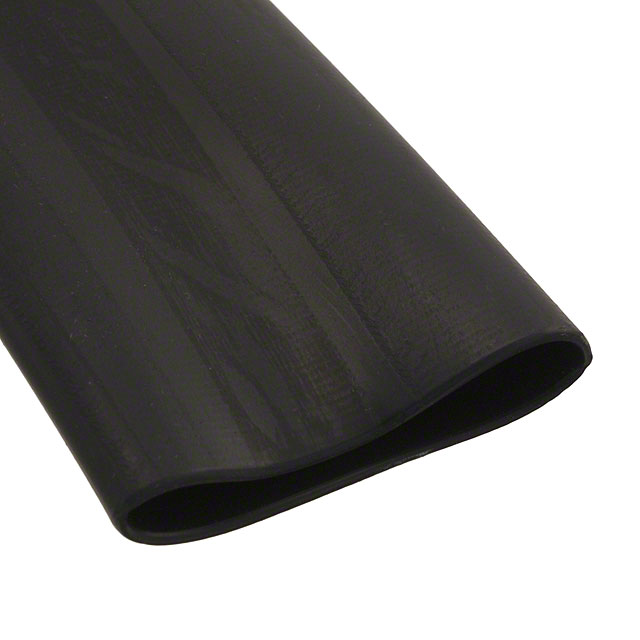

Heat Shrink Tubing, Semi Rigid 1.100" (27.94mm) 3 to 1 Black 0.125' (38.10mm, 1.50")
