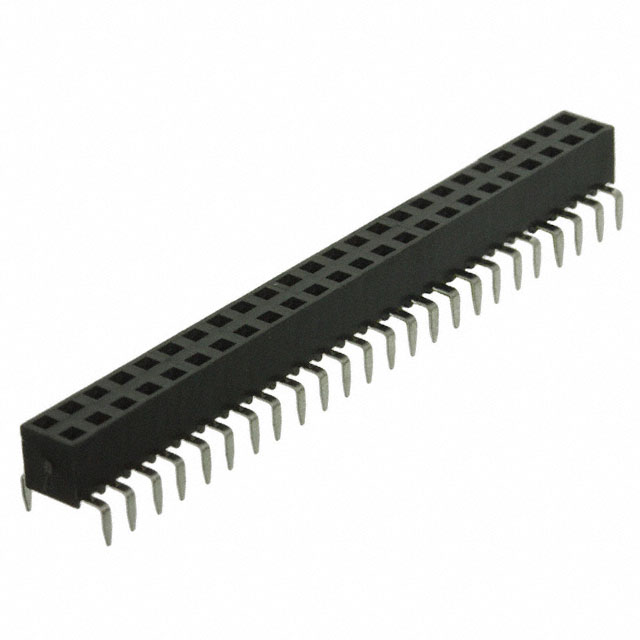

966248-6702-AR

Obsolete

3M (TC)

CONN RCPT 48POS 0.1 GOLD PCB

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN RCPT 48POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	966248-6702-AR

Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.02 Ám
Contact Finish Thickness - Post	40 Áin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	1000 VDC

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Material	Number of Positions Loaded	Contact Material	Mounting Type	Fastening Type	Contact Finish Thickness - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Contact Shape	Contact Finish - Mating	Connector Type	Insulation Height	Insulation Height	Voltage Rating	Material Flammability Rating	Contact Type
3M (TC) 966248-6702-AR	2.54 mm	0.1 in	Black	2 A	-25 °C	105 ░C	Solder	Thermoplastic	All	Copper Alloy	Through Hole	Push-Pull	Flash	2	0.1 in	2.54 mm	0.118 in	3 mm	48	1.02 Ám	40 Áin	Tin	Square	Gold	Receptacle Bottom or Top Entry	0.197 in	5 mm	1000 VDC	UL94 V-0	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

48 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold
