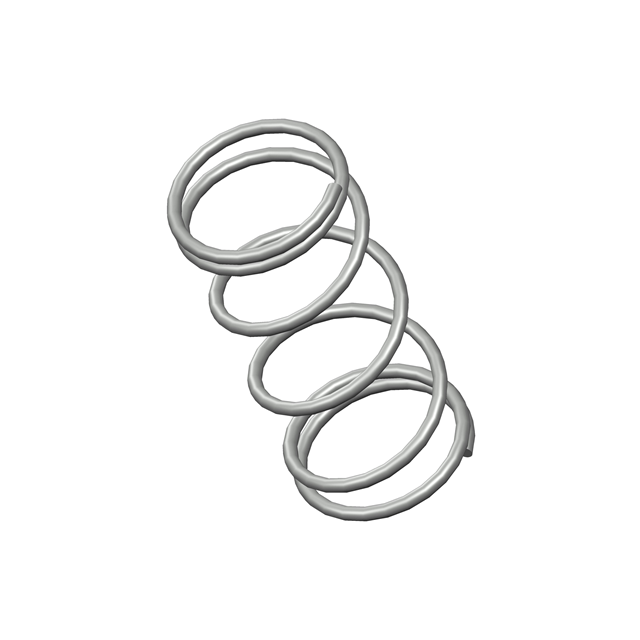

MM-48CS
ActiveCentury Spring Corp
COMP O= .360,L= .84,W= .028
MM-48CS
ActiveCentury Spring Corp
COMP O= .360,L= .84,W= .028
Description
General part information
MM-48CS
COMP O= .360,L= .84,W= .028
Technical Specifications
Parameters and characteristics for this part
| Specification | MM-48CS |
|---|---|
| Diameter - Inside | 0.304 in |
| Diameter - Outside | 0.36 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.84 in |
| Material | Music Wire |
| Rate (lbs/in) | 6.1 lbs/in |
| Type | Compression |
| Wire Diameter | 0.028 in |
