Technical Specifications
Parameters and characteristics for this part
| Specification | MG1JB10M0 |
|---|---|
| Composition | Metal Film |
| Features | Safety, Moisture Resistant, Flame Retardant Coating, High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 10 MOhm |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.453 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.15 | <1d |
CAD
3D models and CAD resources for this part
Description
General part information

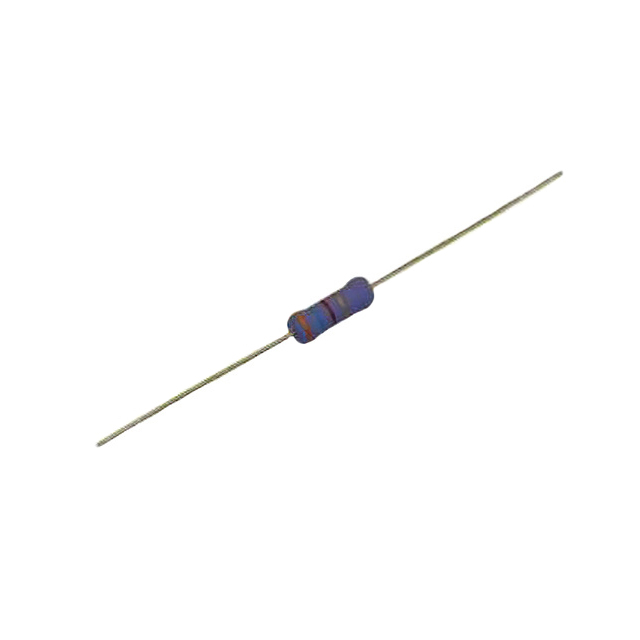

MG1JB10M0
10 MOhms ±5% 1W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Moisture Resistant, Safety Metal Film
