1411169

Active

Phoenix Contact

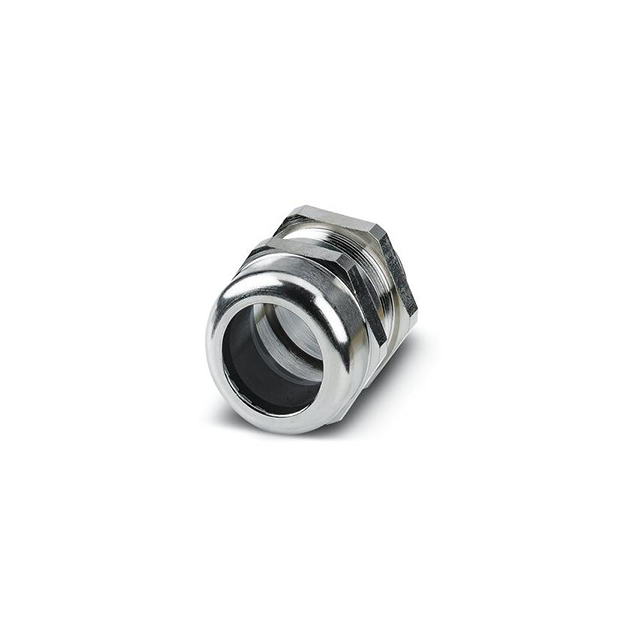

CABLE GLAND 34-44MM M63 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 34-44MM M63 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411169	G-INS-M63 Series

Color	Silver	Gray, Silver, Black
Includes	O-Ring, Seal	Seal, O-Ring
Ingress Protection	IP66, IP68, IP69	IP66/IP68, IP66, IP68, IP69
Material	Brass, Nickel Plated	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	2.087 in
Outside Cable Diameter (Max)	-	53 mm
Outside Cable Diameter (Max) [Max]	44 mm	44 mm
Outside Cable Diameter (Max) [Max]	1.732 in	1.732 in
Outside Cable Diameter (Min) [Min] [diameter]	1.339 in	1.339 - 1.457 in
Outside Cable Diameter (Min) [Min] [diameter]	34 mm	34 - 37 mm
Thread Length	14 mm	10 - 18.01 mm
Thread Length	0.551 in	0.394 - 0.709 in
Thread Size	M63	M63
Type	Cable Gland	Cable Gland

CABLE GLAND 34-44MM M63 POLYAMID

Part	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Size	Material	Thread Length	Thread Length	Ingress Protection	Color	Type	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1411130	100 °C	-40 °C	1.339 in	34 mm	44 mm	1.732 in	M63	Polyamide (PA), Nylon	0.709 in	18.01 mm	IP66/IP68	Gray	Cable Gland	Seal
Phoenix Contact 1424531	100 °C	-40 °C	1.457 in	37 mm				Brass, Nickel Plated	0.394 in	10 mm	IP66, IP68, IP69	Silver	Cable Gland	O-Ring, Seal	2.087 in	53 mm
Phoenix Contact 1411139	100 °C	-40 °C	1.339 in	34 mm	44 mm	1.732 in	M63	Polyamide (PA), Nylon	0.709 in	18.01 mm	IP66/IP68	Black	Cable Gland	Seal
Phoenix Contact 1411169	100 °C	-40 °C	1.339 in	34 mm	44 mm	1.732 in	M63	Brass, Nickel Plated	0.551 in	14 mm	IP66, IP68, IP69	Silver	Cable Gland	O-Ring, Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.65
LCSC	Piece	1	$ 24.82

General part information

Cable Gland Brass, Nickel Plated M63 Silver
