1021498
ActivePhoenix Contact

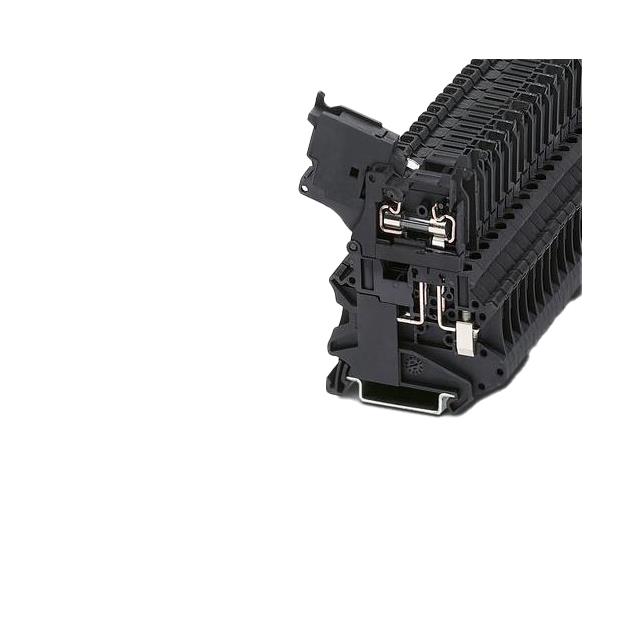

UT 4-HESI (5X20)-EX
1021498
ActivePhoenix Contact
UT 4-HESI (5X20)-EX
Description
General part information
1021498
Terminal Block Connector 2 Position Disconnect Black 10-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 1021498 |
|---|---|
| Color | Black |
| Current - UL | 10 A |
| Disconnect Type | Fuse, Lever |
| Fuse Length | 5 mm |
| Fuse Width | 20 mm |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 9 mm |
| Terminal Width | 6.2 mm |
| Termination Style | Screw |
| Type | Disconnect |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 6 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
