1377172-7
ActiveTE Connectivity AMP Connectors
SMP 0-0034122-0
1377172-7
ActiveTE Connectivity AMP Connectors
SMP 0-0034122-0
Description
General part information
1377172-7

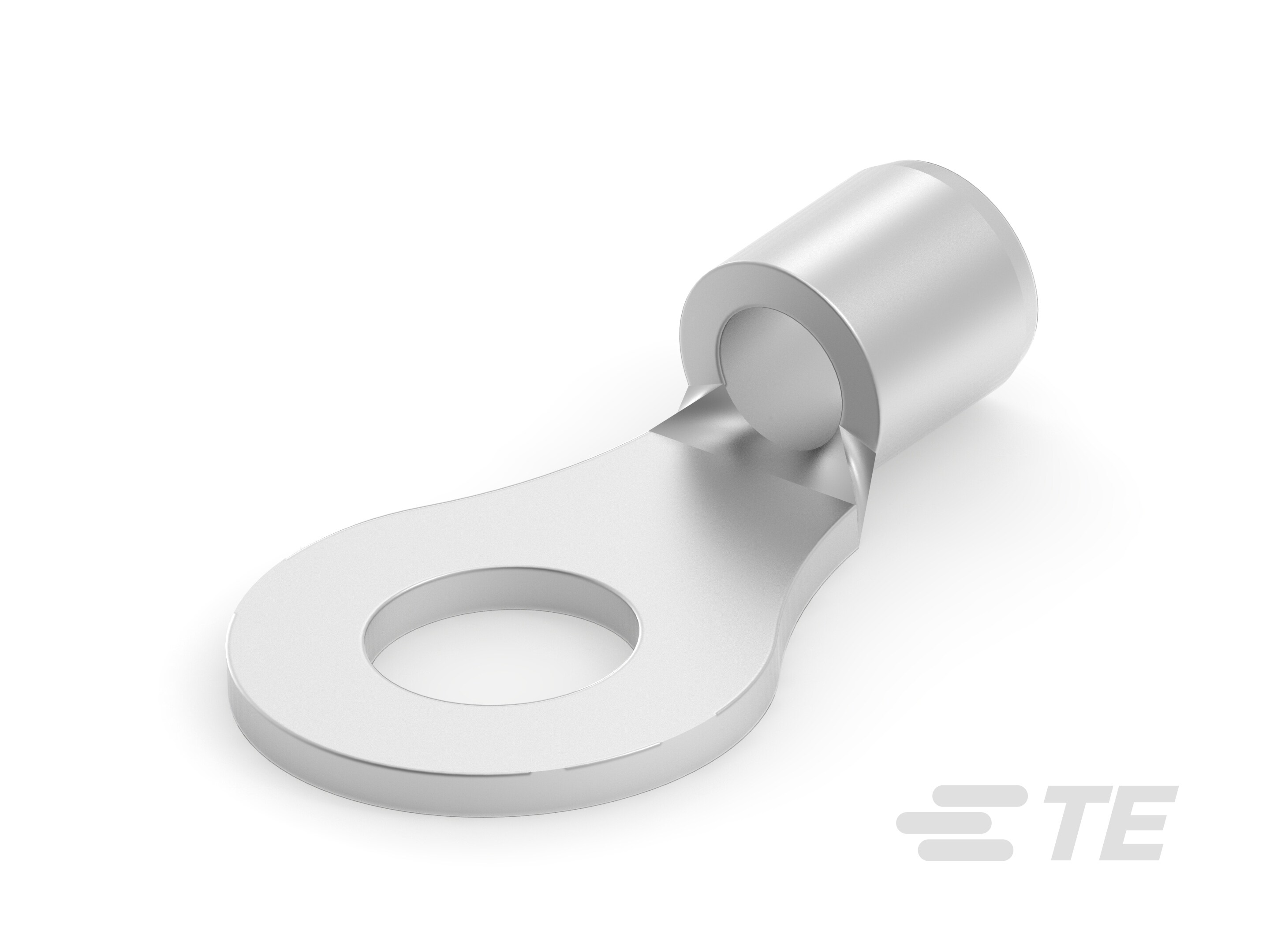

Closed Ring Tongue Terminal, 16 – 14 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 1377172-7 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall | 0.636 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M4 Stud, M4 |
| Terminal Type | Flat Sided |
| Termination | Crimp |
| Thickness | 0.031 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
