CLA50E1200TC-TRL

Active

IXYS

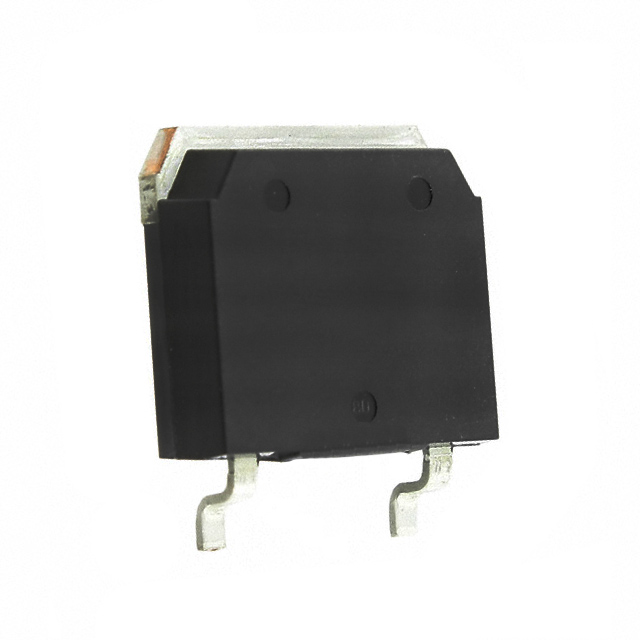

SCR 1.2KV 79A TO268AA

Search across all available documentation for this part.

Active

IXYS

SCR 1.2KV 79A TO268AA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLA50E1200TC-TRL	CLA50 Series

Current - Gate Trigger (Igt) (Max) [Max]	50 mA	50 mA
Current - Hold (Ih) (Max) [Max]	75 mA	75 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	590 A
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	550 A
Current - Off State (Max) [Max]	50 µA	50 µA
Current - On State (It (AV)) (Max)	50 A	50 A
Current - On State (It (RMS)) (Max)	79 A	79 A
Current - On State (It (RMS)) (Max)	-	80 A
Mounting Type	Surface Mount	Surface Mount
Package / Case	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3
SCR Type	Standard Recovery	Standard Recovery
Supplier Device Package	TO-268AA	TO-268AA
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V	1.5 V
Voltage - Off State	1.2 kV	1.2 kV
Voltage - On State (Vtm) (Max) [Max]	1.6 V	1.6 V

SCR 1.2KV 79A TO268AA

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Supplier Device Package	Mounting Type	Current - On State (It (AV)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	SCR Type	Package / Case	Voltage - Off State	Voltage - On State (Vtm) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Off State (Max) [Max]	Current - On State (It (RMS)) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - On State (It (RMS)) (Max) [Max]
IXYS CLA50E1200TC-TRL	1.5 V	TO-268AA	Surface Mount	50 A	50 mA	Standard Recovery	D3PAK (2 Leads + Tab), TO-268-3, TO-268AA	1.2 kV	1.6 V	75 mA	50 µA	79 A
IXYS CLA50E1200TC-TUB	1.5 V	TO-268AA	Surface Mount	50 A	50 mA	Standard Recovery	D3PAK (2 Leads + Tab), TO-268-3, TO-268AA	1.2 kV	1.6 V	75 mA	50 µA		590 A	550 A	80 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 1.2 kV 79 A Standard Recovery Surface Mount TO-268AA
