B82614R2272A030
ObsoleteEPCOS - TDK Electronics
CMC 500UH 2.7A 2LN TH
B82614R2272A030
ObsoleteEPCOS - TDK Electronics
CMC 500UH 2.7A 2LN TH
Description
General part information
B82614R2272A030

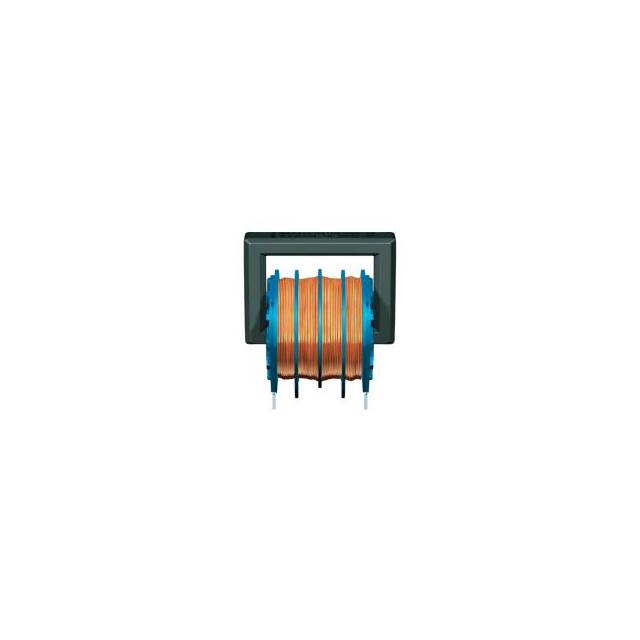

500 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 2.7A DCR 230mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82614R2272A030 |
|---|---|
| Current Rating (Max) | 2.7 A |
| DC Resistance (DCR) (Max) | 230 mOhm |
| DC Resistance (DCR) (Typ) | 230 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.22 in |
| Inductance | 500 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.28 in |
| Size / Dimension Width | 0.827 in |
| Voltage Rating - AC | 250 V |
