DPH-28712-C
ActiveBUD INDUSTRIES

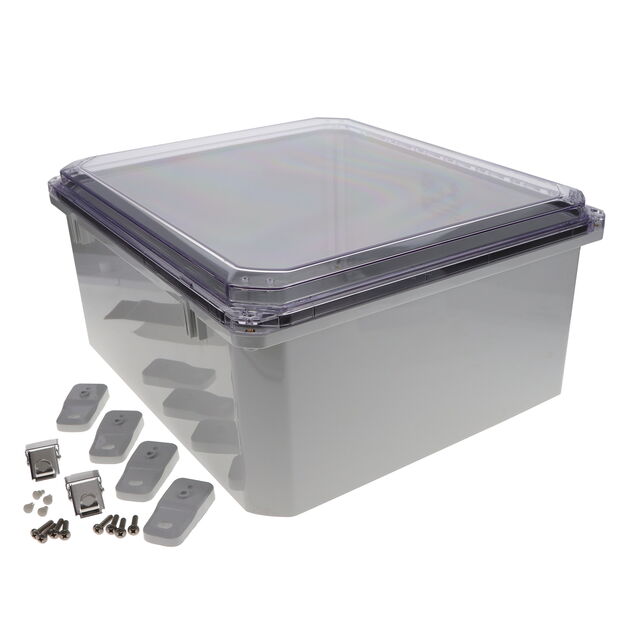

LIGHT GRAY POLYCARBONATE BRACKET MOUNT HEAVY DUTY NEMA 6P/IP68 HINGED COVER PC ENCLOSURE
DPH-28712-C
ActiveBUD INDUSTRIES
LIGHT GRAY POLYCARBONATE BRACKET MOUNT HEAVY DUTY NEMA 6P/IP68 HINGED COVER PC ENCLOSURE
Description
General part information
DPH-28712-C
Enclosure Plastic, Polycarbonate Gray, Clear Cover/Door Hinged Door, Cover Included 17.240" L x 15.240" W (437.90mm x 387.10mm) X 8.250" (209.55mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | DPH-28712-C |
|---|---|
| Area (L x W) | 263 in² |
| Color | Clear Cover/Door, Gray |
| Container Type | Enclosure |
| Design | Hinged Door, Cover Included |
| Height | 8.25 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 5A |
| Ratings | 6P, 4, NEMA 1, 12, 3R, 4X, 6, 2, 13, IP68 |
| Size / Dimension Length | 17.24 in |
| Size / Dimension Width | 15.24 in |
| Thickness | 0.18 in |
