LLE105100
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR LEVEL PUSH-PULL
LLE105100
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR LEVEL PUSH-PULL
Description
General part information

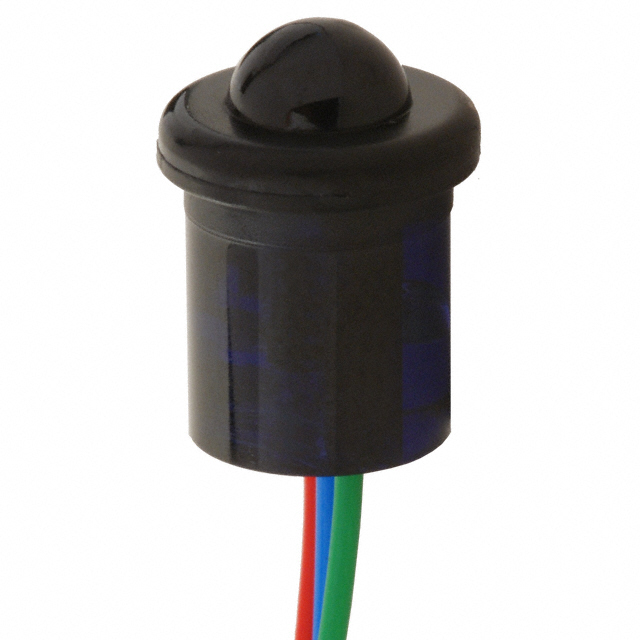

LLE105100
Liquid Level Sensor Push-Pull High-Dry Output Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | LLE105100 |
|---|---|
| Current | 5 mA |
| Material - Housing & Prism | PES, Polysulfone |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | High-Dry |
| Output Type | Push-Pull |
| Type | Liquid |
| Voltage Rating (Max) | 12 V |
| Voltage Rating (Min) | 5 V |
