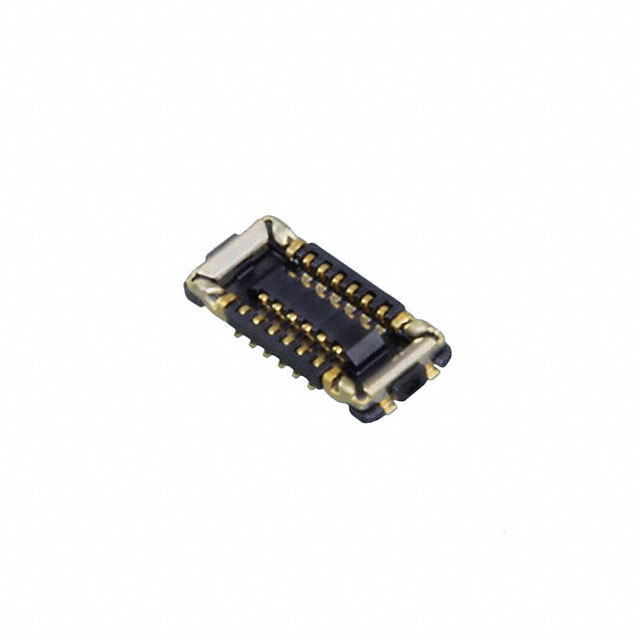

Specification	5050661210

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.022 in
Mated Stacking Height	0.6 mm
Mounting Type	Surface Mount
Number of Positions	12
Number of Rows	2
Pitch	0.014 in

505066 Series

SlimStack Board-to-Board Receptacle, 0.35mm Pitch, SSB RP Series, 0.60mm Mated Height, 2.00mm Mated Width, 6 Circuits, Armor Nail

Part	Connector Type	Contact Finish	Mated Stacking Height	Height Above Board	Number of Positions	Mounting Type	Number of Rows	Features	Pitch	Contact Finish Thickness
Molex 5050664010	Center Strip Contacts Receptacle	Gold	0.6 mm	0.022 in	40	Surface Mount	2	Solder Retention	0.014 in
Molex 5050661622	Center Strip Contacts Receptacle	Gold	0.6 mm	0.023 in	16	Surface Mount	2	Pick and Place Solder Retention	0.014 in	4 µin
Molex 5050661422	Center Strip Contacts Receptacle	Gold	0.6 mm	0.023 in	14	Surface Mount	2	Pick and Place Solder Retention	0.014 in	4 µin
Molex 5050662222	Center Strip Contacts Receptacle	Gold	0.6 mm	0.023 in	22	Surface Mount	2	Pick and Place Solder Retention	0.014 in	4 µin
Molex 5050660822	Center Strip Contacts Receptacle	Gold	0.6 mm	0.023 in	8	Surface Mount	2	Solder Retention	0.014 in	3.94 µin
Molex 5050664020	Center Strip Contacts Receptacle	Gold	0.6 mm	0.022 in	40	Surface Mount	2	Solder Retention	0.014 in
Molex 5050660610	Center Strip Contacts Receptacle	Gold	0.6 mm	0.022 in	6	Surface Mount	2	Solder Retention	0.014 in
Molex 5050661022	Center Strip Contacts Receptacle	Gold	0.6 mm	0.023 in	10	Surface Mount	2	Pick and Place Solder Retention	0.014 in	4 µin
Molex 5050661222	Center Strip Contacts Receptacle	Gold	0.6 mm	0.023 in	12	Surface Mount	2	Pick and Place Solder Retention	0.014 in	4 µin
Molex 5050660622	Center Strip Contacts Receptacle	Gold	0.6 mm	0.023 in	6	Surface Mount	2	Pick and Place Solder Retention	0.014 in	4 µin
