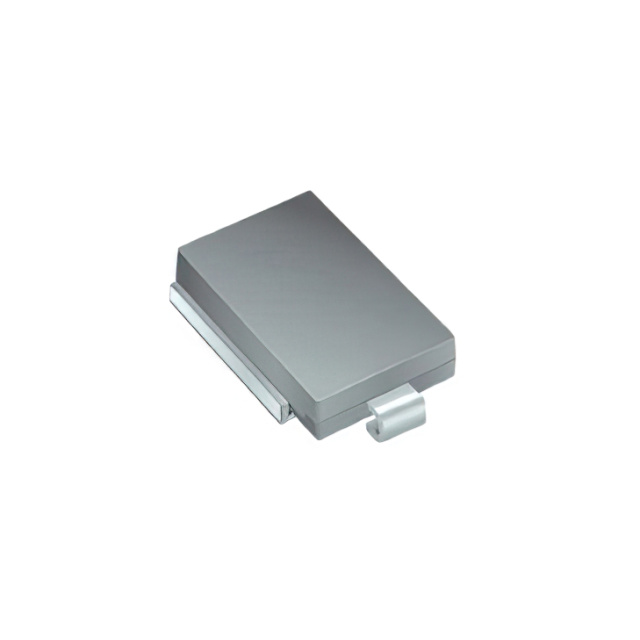

ATV66SM8T33A-HF
ActiveComchip Technology
AUTOMOTIVE DIODE TVS 33VWM 26VC
ATV66SM8T33A-HF
ActiveComchip Technology
AUTOMOTIVE DIODE TVS 33VWM 26VC
Description
General part information
ATV66SM8T33A-HF
53.3V Clamp 124A Ipp Tvs Diode Surface Mount DO-218AB
Technical Specifications
Parameters and characteristics for this part
| Specification | ATV66SM8T33A-HF |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse | 124 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | DO-218AB |
| Package Name | DO-218AB |
| Power - Peak Pulse | 6600 W |
| Power Line Protection | No |
| Qualification | AEC-Q101 |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 36.7 V |
| Voltage - Clamping (Max) | 53.3 V |
| Voltage - Reverse Standoff (Typ) | 33 V |
