1628023
ActivePhoenix Contact
EV-TAG3PK-1AC32A-5 0M6 0ESBK01
1628023
ActivePhoenix Contact
EV-TAG3PK-1AC32A-5 0M6 0ESBK01
Description
General part information
1628023

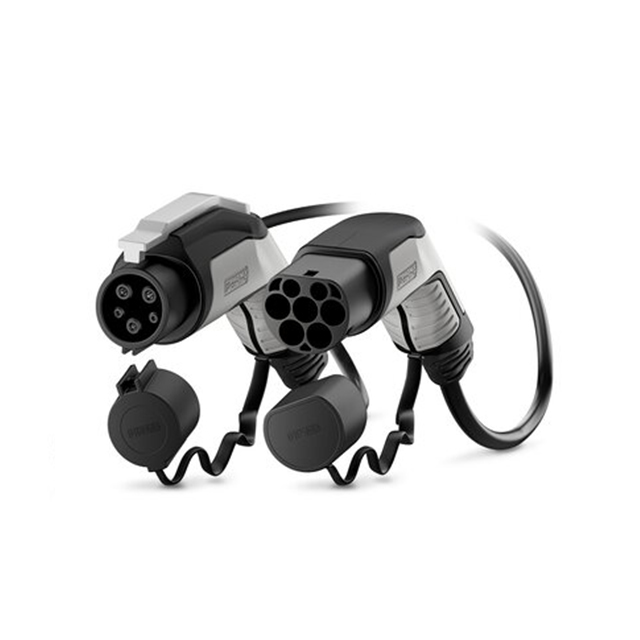

16.40' (5.00m) Power Cord Black IEC 62196-2 (Type 1) To IEC 62196-2 (Type 2)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1628023 |
|---|---|
| 1st Connector | IEC 62196-2 (Type 1) |
| 2nd Connector | IEC 62196-2 (Type 2) |
| Color | Black |
| Conductor Types | Signal, Power |
| Current Rating Options | 2A, 32A |
| Length | 16.4 ft |
| Number of Conductors - Power | 3 |
| Number of Conductors - Signal | 2 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -30 °C |
| Shielding | Unshielded |
| Style | Female Plug, Male Plug |
| Voltage Rating (AC) | 250 VAC, 30 VAC |
| Wire Gauge | 20 AWG, 10 AWG |
