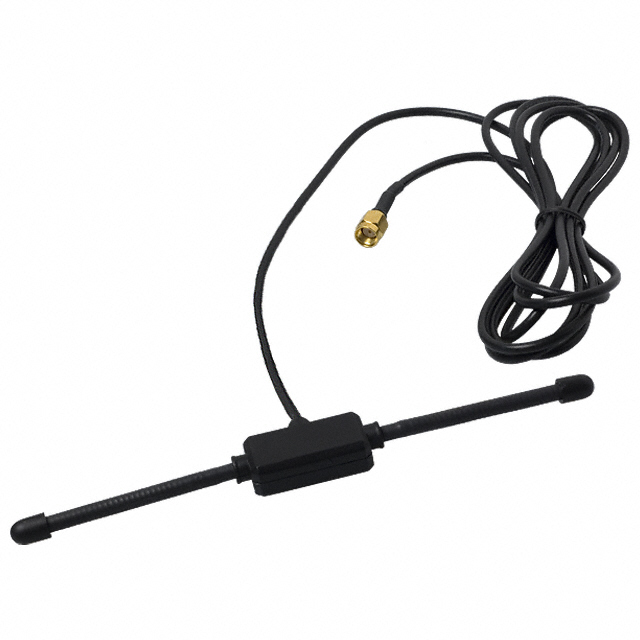

ANT-433-MHW-RPS-S
ActiveTE Connectivity Linx
RF ANT 433MHZ WHP CTR ADH 79"
Deep-Dive with AI
Search across all available documentation for this part.
ANT-433-MHW-RPS-S
ActiveTE Connectivity Linx
RF ANT 433MHZ WHP CTR ADH 79"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-433-MHW-RPS-S |
|---|---|
| Antenna Type | Whip, Center-Fed Double |
| Applications | ISM, Alarms, Security Systems, Remote Control |
| Features | Cable - 2m |
| Frequency (Center/Band) | 433 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 453 MHz |
| Frequency Range [Min] | 413 MHz |
| Gain | 1.2 dBi |
| Height (Max) [Max] | 5.709 in |
| Height (Max) [Max] | 145 mm |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | RP-SMA Male |
| VSWR | 1.9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.64 | |
Description
General part information
ANT-433-MHW-RPS-S
RF ANTENNA Alarms, ISM, Remote Control, Security Systems Whip, Center-Fed Double RP-SMA Male Adhesive
Documents
Technical documentation and resources
No documents available
