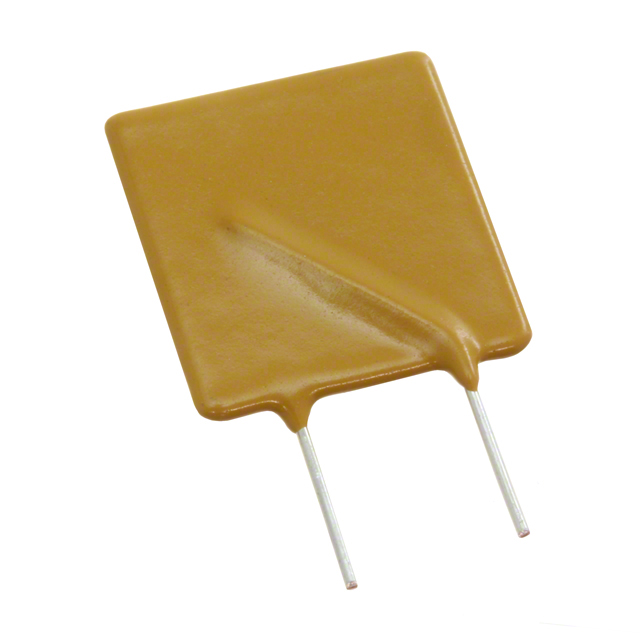

0ZRP0400FF1A
ActiveBEL MAGNETIC SOLUTIONS
PTC RESET FUSE 60V 4A RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0ZRP0400FF1A
ActiveBEL MAGNETIC SOLUTIONS
PTC RESET FUSE 60V 4A RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0ZRP0400FF1A |
|---|---|
| Approval Agency | UL |
| Current - Hold (Ih) (Max) | 4 A |
| Current - Max [Max] | 40 A |
| Current - Trip (It) | 8 A |
| Grade | Automotive |
| Height - Seated (Max) [Max] [z] | 24.9 mm |
| Height - Seated (Max) [Max] [z] | 0.98 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Disc, Radial |
| Qualification | AEC-Q200 |
| Resistance - Initial (Ri) (Min) [Min] | 14 mOhms |
| Resistance - Post Trip (R1) (Max) [Max] | 60 mOhms |
| Size / Dimension [x] | 21 mm |
| Size / Dimension [x] | 0.827 in |
| Size / Dimension [y] | 3.6 mm |
| Size / Dimension [y] | 0.142 " |
| Time to Trip | 24 s |
| Type | Polymeric |
| Voltage - Max [Max] | 60 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.90 | |
| 5 | $ 0.75 | |||
| 10 | $ 0.69 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| 5000 | $ 0.34 | |||
Description
General part information
0ZRP0400FF1A
Polymeric PTC Resettable Fuse 60V 4 A Ih Through Hole Radial, Disc
