5P AMPMODU II PIN HDR-826632-5

826632-5

Active
TE Connectivity AMP Connectors

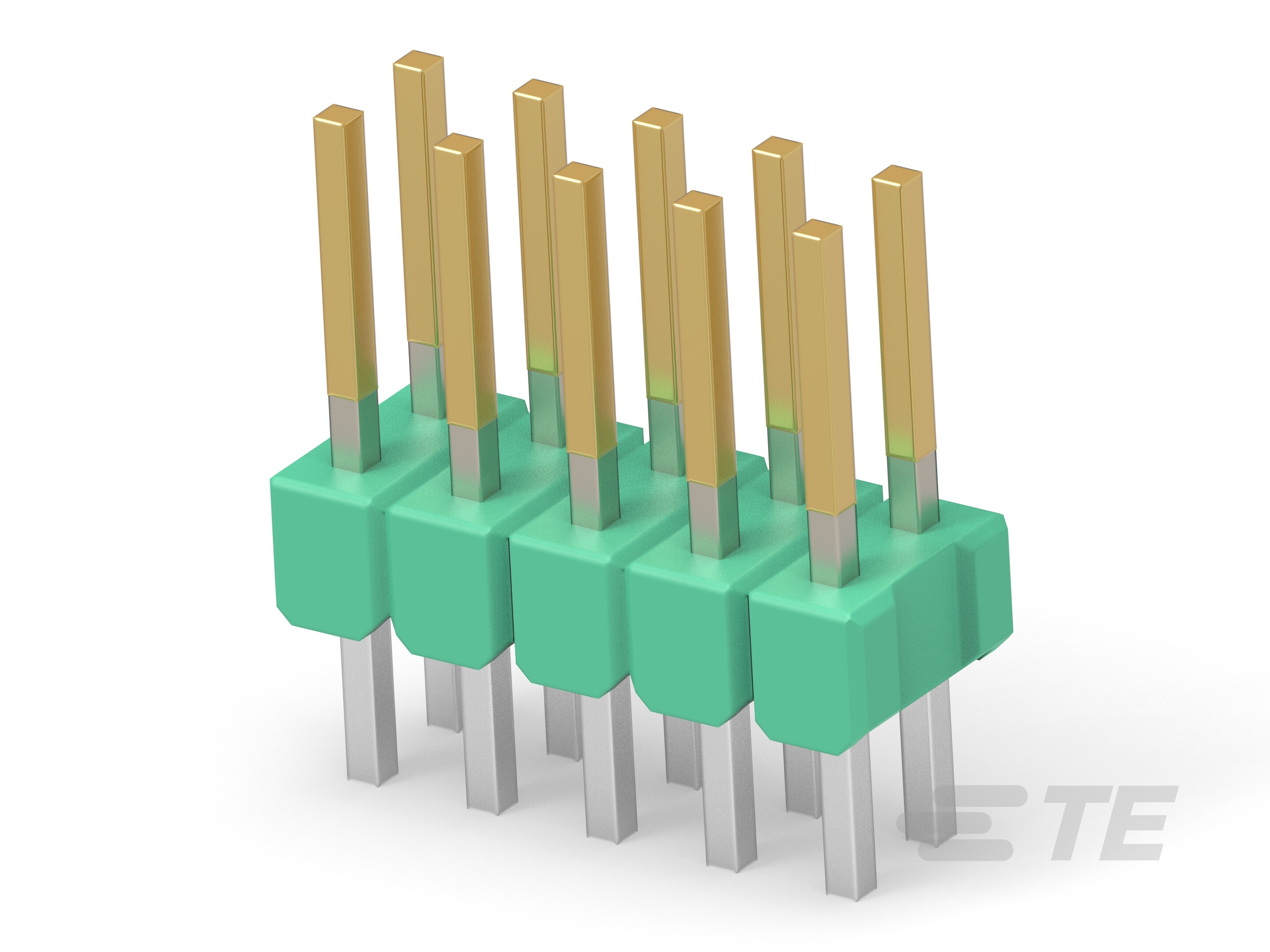

PIN HEADER, PIN HEADER, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Find alt
5P AMPMODU II PIN HDR-826632-5

826632-5

Active
TE Connectivity AMP Connectors

PIN HEADER, PIN HEADER, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Find alt

Description

General part information

826632-5

PIN HEADER, PIN HEADER, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE STRAIGHT

Technical Specifications

Parameters and characteristics for this part

Specification826632-5
Connector TypeBreakaway, Header
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating3.9 µin
Contact Length - Mating0.264 in
Contact Length - Post0.126 in
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating5 A
Fastening TypePush-Pull
Insulation ColorGreen
Insulation Height0.11 in
Insulation MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions10
Number of Positions LoadedAll
Number of Rows2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-65 °C
Overall Contact Length0.5 in
Pitch - Mating0.1 in
Row Spacing - Mating0.1 in
ShroudingUnshrouded
StyleBoard, Board or Cable
TerminationSolder
