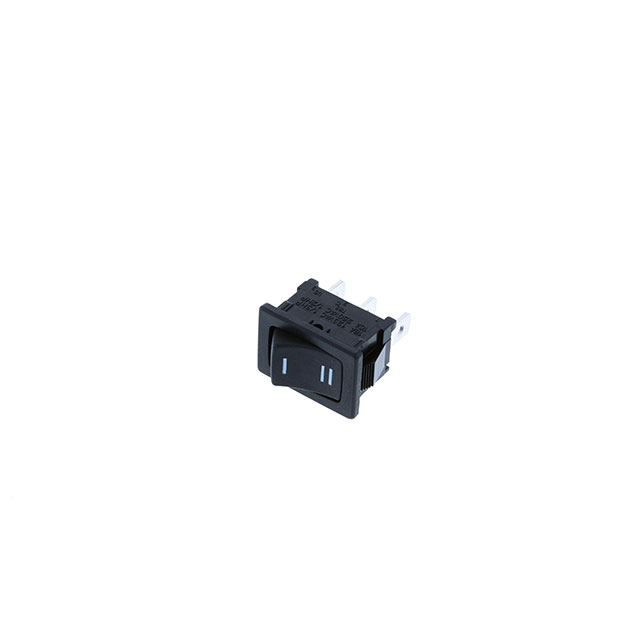

RF1-1D-DC-2-B-4
ActiveSwitch Components
SWITCH ROCKER SPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RF1-1D-DC-2-B-4
ActiveSwitch Components
SWITCH ROCKER SPDT 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RF1-1D-DC-2-B-4 |
|---|---|
| Actuator Marking | I II |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, cURus, ENEC |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A, 16 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 13 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.12 | |
Description
General part information
RF1-1D-DC-2-B-4
Rocker Switch SPDT 16 (AC), 16 (DC) 125 V Panel Mount, Snap-In
