Description
General part information
GPPC-PS-1-02-EG-RA-SM

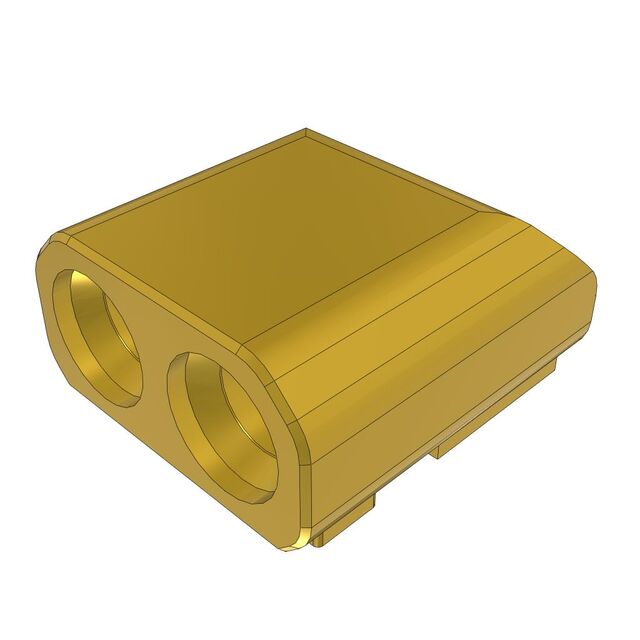

SMPM Connector Plug, Male Pin Surface Mount, Right Angle; Through Hole Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | GPPC-PS-1-02-EG-RA-SM |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Snap-On |
| Features | Smooth Bore |
| Frequency - Max | 65 GHz |
| Housing Color | Gold |
| Mounting Type | Through Hole, Right Angle, Surface Mount |
| Number of Ports | 2 |
| Shield Termination | Solder |
