IWAS4832AEEB120KF1
ActiveVishay Dale
CHARGING COIL, 12UH, 10% ROHS COMPLIANT: YES
IWAS4832AEEB120KF1
ActiveVishay Dale
CHARGING COIL, 12UH, 10% ROHS COMPLIANT: YES
Description
General part information

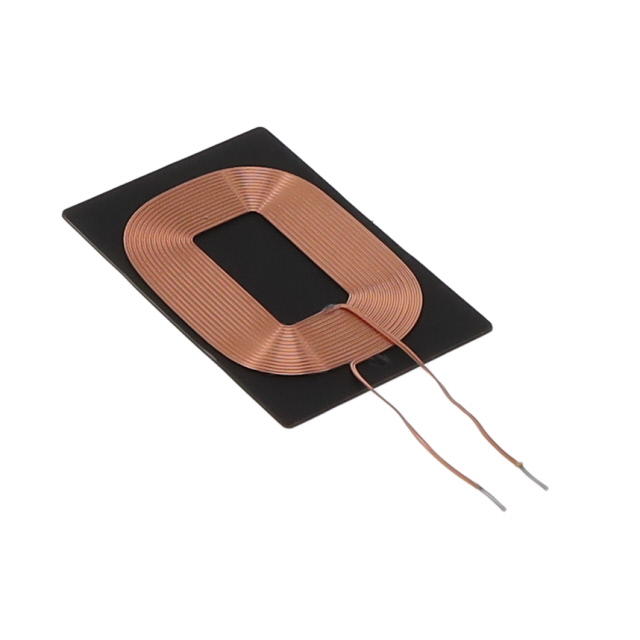

IWAS4832AEEB120KF1
1 Coil, 1 Layer 12µH Wireless Charging Coil Receiver 200mOhm Max
Technical Specifications
Parameters and characteristics for this part
| Specification | IWAS4832AEEB120KF1 |
|---|---|
| Current Rating | 3 A |
| DC Resistance (DCR) (Max) | 200 mOhm |
| Function | Receiver |
| Inductance | 12 µH |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Q | 33 |
| Size / Dimension Height | 0.04 in |
| Size / Dimension Length | 1.89 in |
| Size / Dimension Width | 1.26 in |
| Tolerance | 10 % |
| Type | 1 Layer, 1 Coil |
