153216-2020-RB-WB

Active

80000904013 153216-2020-RB-WB=16/2MM/BMSKT/SMT/THRU-BRD/PEGS/30U/ROHS/T&R

Search across all available documentation for this part.

Active

80000904013 153216-2020-RB-WB=16/2MM/BMSKT/SMT/THRU-BRD/PEGS/30U/ROHS/T&R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	153216-2020-RB-WB	153216 Series

Connector Type	Receptacle, Bottom or Top Entry	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place, Board Guide	Board Guide, Pick and Place
Insulation Color	Black	Black
Insulation Height	0.129 in	0.129 in
Insulation Height	3.28 mm	3.28 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions	16	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

CONN SOCKET STRIP SKT 16 POS 2MM SOLDER ST TOP ENTRY SMD TRAY

Part	Number of Positions	Contact Material	Number of Rows	Voltage Rating	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Shape	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Number of Positions Loaded	Termination	Connector Type	Contact Finish - Mating	Style
3M 153216-2020-RB	16	Copper Alloy	2	500 V	Tin	Push-Pull	0.129 in	3.28 mm	Female Socket	105 ░C	-55 °C	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Black	Square	Surface Mount	30 Áin	0.76 Ám	Board Guide	All	Solder	Receptacle, Bottom or Top Entry	Gold	Board to Board, Cable
3M 153216-2020-TH	16	Copper Alloy	2	500 V	Tin-Lead	Push-Pull	0.129 in	3.28 mm	Female Socket	105 ░C	-55 °C	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Black	Square	Surface Mount	15 µin	0.38 µm	Board Guide	All	Solder	Receptacle, Bottom or Top Entry	Gold	Board to Board, Cable
3M 153216-2020-RB-WB	16	Copper Alloy	2	500 V	Tin	Push-Pull	0.129 in	3.28 mm	Female Socket	105 ░C	-55 °C	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Black	Square	Surface Mount	30 Áin	0.76 Ám	Board Guide, Pick and Place	All	Solder	Receptacle, Bottom or Top Entry	Gold	Board to Board, Cable
3M 153216-2020-TB	16	Copper Alloy	2	500 V	Tin-Lead	Push-Pull	0.129 in	3.28 mm	Female Socket	105 ░C	-55 °C	0.079 in	2 mm	UL94 V-0	0.079 in	2 mm	Black	Square	Surface Mount	30 Áin	0.76 Ám	Board Guide	All	Solder	Receptacle, Bottom or Top Entry	Gold	Board to Board, Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

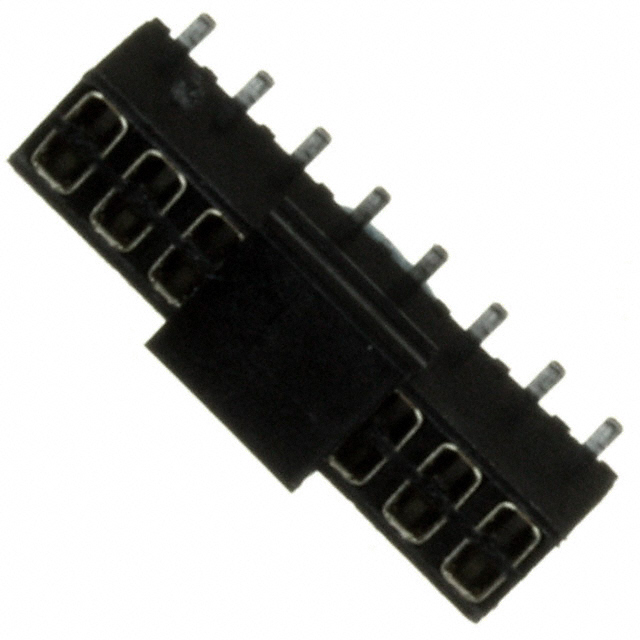

16 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold
