9919 0091000

Active

Belden Inc.

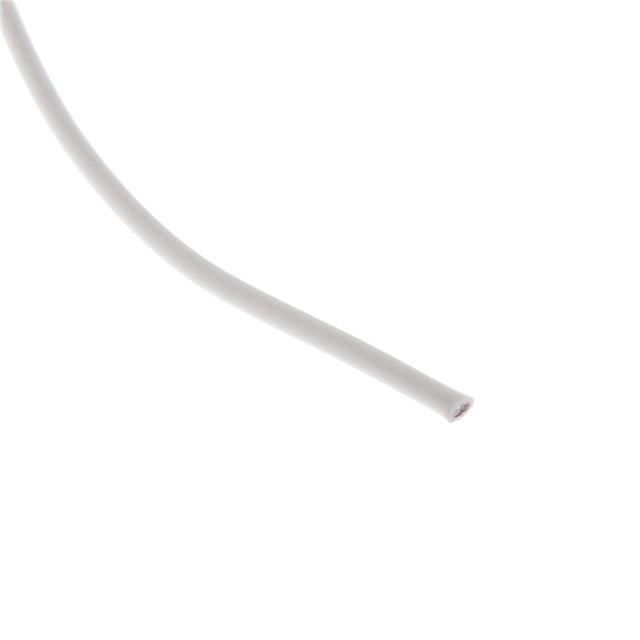

HOOK-UP STRND 20AWG WHT 1000'

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 20AWG WHT 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	9919 0091000

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.069 in
Jacket (Insulation) Diameter [diameter]	1.75 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Length	1000 ft
Length	304.8 m
Ratings	UL Style 1007/1569
Voltage	300 V
Wire Gauge	20 AWG

Part	Length	Length	Jacket (Insulation) Material	Cable Type	Conductor Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
Belden Inc. 9919 0081000	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Hook-Up	Copper Tinned	300 V	0.069 in	1.75 mm	Gray	UL Style 1007/1569	0.016 in	0.41 mm	20 AWG	28	7
Belden Inc. 9919 007100			Poly-Vinyl Chloride (PVC)	Hook-Up	Copper Tinned	300 V	0.069 in	1.75 mm	Violet	UL Style 1007/1569	0.016 in	0.41 mm	20 AWG	28	7	30.5 m	100 ft
Belden Inc. 9919 001100			Poly-Vinyl Chloride (PVC)	Hook-Up	Copper Tinned	300 V	0.069 in	1.75 mm	Brown	UL Style 1007/1569	0.016 in	0.41 mm	20 AWG	28	7	30.5 m	100 ft
Belden Inc. 9919 009100			Poly-Vinyl Chloride (PVC)	Hook-Up	Copper Tinned	300 V	0.069 in	1.75 mm		UL Style 1007/1569	0.016 in	0.41 mm	20 AWG	28	7	30.5 m	100 ft
Belden Inc. 9919 0091000	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Hook-Up	Copper Tinned	300 V	0.069 in	1.75 mm		UL Style 1007/1569	0.016 in	0.41 mm	20 AWG	28	7
Belden Inc. 9919 002100			Poly-Vinyl Chloride (PVC)	Hook-Up	Copper Tinned	300 V	0.069 in	1.75 mm	Red	UL Style 1007/1569	0.016 in	0.41 mm	20 AWG	28	7	30.5 m	100 ft
Belden Inc. 9919 013100			Poly-Vinyl Chloride (PVC)	Hook-Up	Copper Tinned	300 V	0.069 in	1.75 mm	Blue	UL Style 1007/1569	0.016 in	0.41 mm	20 AWG	28	7	30.5 m	100 ft
Belden Inc. 9919 0011000	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Hook-Up	Copper Tinned	300 V	0.069 in	1.75 mm	Brown	UL Style 1007/1569	0.016 in	0.41 mm	20 AWG	28	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.82

General part information

20 AWG Hook-Up Wire 7/28 White 300V 1000.0' (304.8m)
