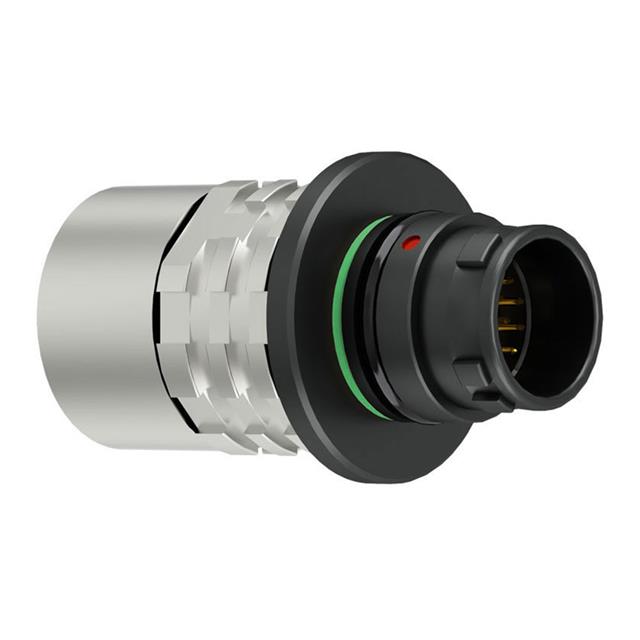

A10WDM-P12XMM0-0000
ActiveODU
ODU AMC HD PLUG, STY 1, SZ 0, SE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A10WDM-P12XMM0-0000 | A10WDM-P Series |
|---|---|---|
| Applications | Medical, Industrial, Military | Medical, Industrial, Military |
| Backshell Material, Plating | Ruthenium over Electroless Nickel, Brass | Ruthenium over Electroless Nickel, Brass |
| Cable Opening [custom] | 0.276 in | 0.276 in |
| Cable Opening [custom] | 7 mm | 7 mm |
| Color | Black, Silver | Black, Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1.27 µm | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin | 50 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 5 A, 1 A | 1 - 5 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 12 | 9 - 12 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -51 °C | -51 °C |
| Orientation | D | D |
| Primary Material | Metal | Metal |
| Shell Finish | Ruthenium over Electroless Nickel | Ruthenium over Electroless Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 0 | 0 |
| Shielding | Shielded | Shielded |
A10WDM-P Series
ODU AMC HD PLUG, STY 1, SZ 0, SE
| Part | Color | Fastening Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Backshell Material, Plating | Insert Material | Applications | Contact Finish - Mating | Cable Opening [custom] | Cable Opening [custom] | Primary Material | Orientation | Shell Finish | Shell Material | Current Rating (Amps) | Material Flammability Rating | Mounting Type | Contact Material | Shell Size - Insert | Shielding | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Black, Silver | Detent Lock, Push-Pull | IP68 - Dust Tight, Waterproof | -51 °C | 125 °C | Male Pins, Plug | 9 | 1.27 µm | 50 µin | Brass, Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | Industrial, Medical, Military | Gold | 0.276 in | 7 mm | Metal | D | Ruthenium over Electroless Nickel | Brass | 1 A, 5 A | UL94 V-0 | Free Hanging (In-Line) | Copper Alloy | 0 | Shielded | Backshell | ||
Black, Silver | Detent Lock, Push-Pull | IP68 - Dust Tight, Waterproof | -51 °C | 125 °C | Male Pins, Plug | 1.27 µm | 50 µin | Brass, Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | Industrial, Medical, Military | Gold | 0.276 in | 7 mm | Metal | D | Ruthenium over Electroless Nickel | Brass | UL94 V-0 | Free Hanging (In-Line) | Copper Alloy | 0 | Shielded | Backshell | 16 | |||
Black, Silver | Detent Lock, Push-Pull | IP68 - Dust Tight, Waterproof | -51 °C | 125 °C | Male Pins, Plug | 12 | 1.27 µm | 50 µin | Brass, Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | Industrial, Medical, Military | Gold | 0.276 in | 7 mm | Metal | D | Ruthenium over Electroless Nickel | Brass | 1 A, 5 A | UL94 V-0 | Free Hanging (In-Line) | Copper Alloy | 0 | Shielded | Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 110.13 | |
Description
General part information
A10WDM-P Series
12 (10 + 2 Power) Position Circular Connector Plug, Male Pins Solder Cup
