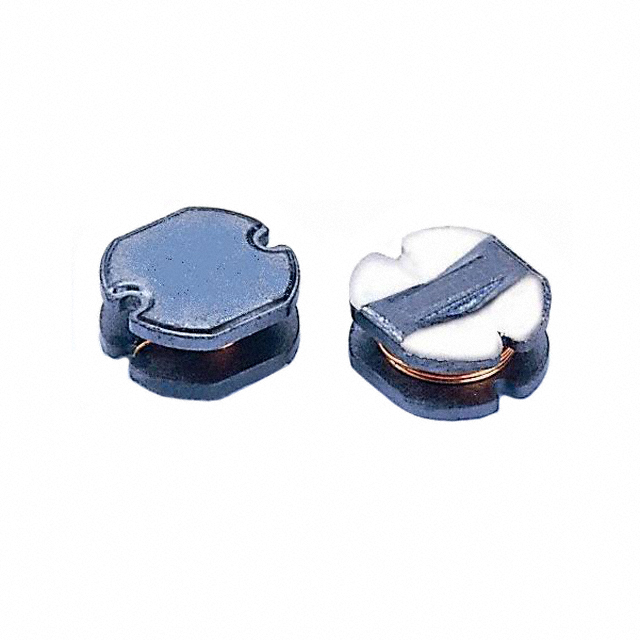

SC73-390
ActiveSignal Transformer
FIXED IND 39UH 1.3A 220 MOHM SMD
SC73-390
ActiveSignal Transformer
FIXED IND 39UH 1.3A 220 MOHM SMD
Description
General part information
SC73-390
39 µH Unshielded Wirewound Inductor 1.3 A 220mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC73-390 |
|---|---|
| Current - Saturation (Isat) | 0.74 mA |
| Current Rating | 1.3 A |
| DC Resistance (DCR) (Max) | 220 mOhm |
| Height - Seated (Max) | 0.15 in |
| Inductance | 39 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.319 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 20 % |
| Type | Wirewound |
