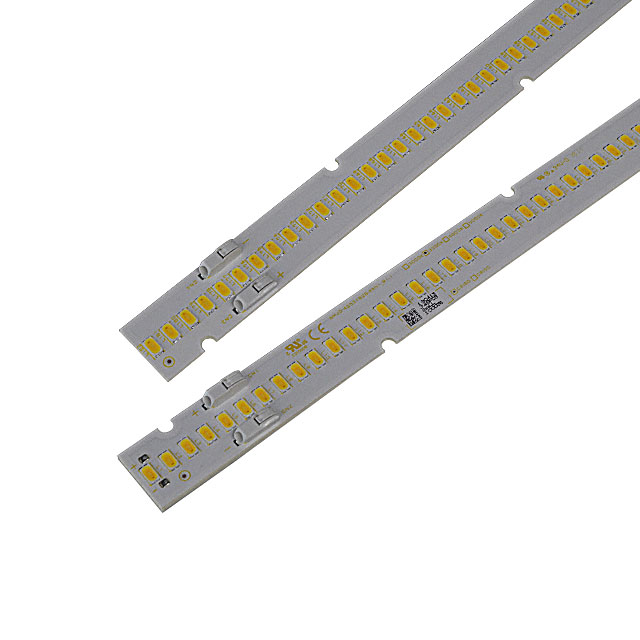

SMJD-4253182B-XXN1 00J45F038ALL

Active

Seoul Semiconductor

LED MOD IND WARM WHT RECT 3500K

Search across all available documentation for this part.

Active

Seoul Semiconductor

LED MOD IND WARM WHT RECT 3500K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	3008	$ 12.88

General part information

LED Lighting COBs Engines Modules LED Module Industrial White, Warm Rectangle

Technical documentation and resources

Specification	SMJD-4253182B-XXN1 00J45F038ALL	SMJD-4253182 Series

CCT (K)	3500 K	3000 - 3500 K
Color	White, Warm	White, Warm
Configuration	Rectangle	Rectangle, Linear Light Strip
CRI (Color Rendering Index)	80	80
Current - Max [Max]	1.82 A	1.82 A
Current - Test	1.3 A	1.3 A
Height [z]	5.5 mm	5.5 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	175 lm/W	175 lm/W
Luminous Flux @ Current/Temperature	9450 lm	9450 lm
Size / Dimension [x]	1120 mm	1120 mm
Size / Dimension [y]	20 mm	20 mm
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	41.5 V	41.5 V

Part	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Color	Type	CCT (K)	Height [z]	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Configuration	Lens Type	Voltage - Forward (Vf) (Typ)	Current - Max [Max]
Seoul Semiconductor SMJD-4253182B-XXN1 00J45F038ALL	1.3 A	1120 mm	20 mm	Warm, White	LED Module	3500 K	5.5 mm	175 lm/W	9450 lm	80	Rectangle	Flat	41.5 V	1.82 A
Seoul Semiconductor SMJD-4253182B-XXN100J45G038ALL	1.3 A	1120 mm	20 mm	Warm, White	LED Module	3000 K	5.5 mm	175 lm/W	9450 lm	80	Linear Light Strip	Flat	41.5 V	1.82 A
