MP-4164-150S-C - MP-4164-150S-C

MP-4164-150S-C

Active
AMPHENOL AUDIO

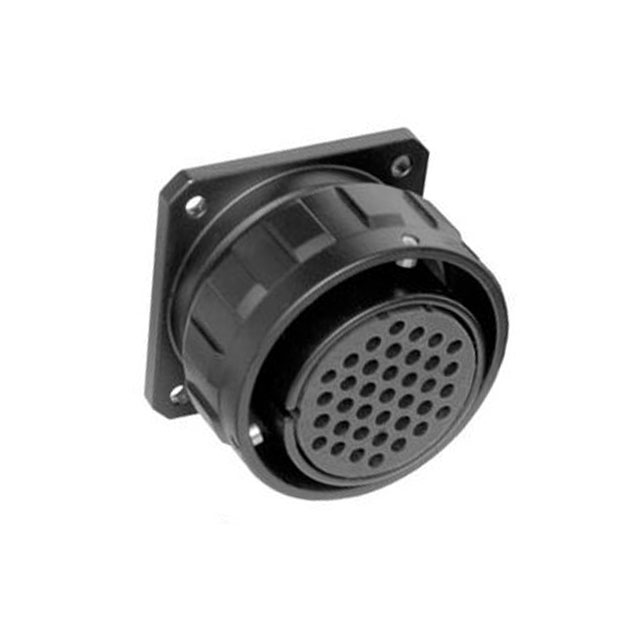

CIRCULAR CONNECTOR, MP-41 SERIES, PANEL MOUNT PLUG, 150 CONTACTS, SOLDER SOCKET, BAYONET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetAudio Multipin Conn Catalog+2
MP-4164-150S-C - MP-4164-150S-C

MP-4164-150S-C

Active
AMPHENOL AUDIO

CIRCULAR CONNECTOR, MP-41 SERIES, PANEL MOUNT PLUG, 150 CONTACTS, SOLDER SOCKET, BAYONET

Deep-Dive with AI

DocumentsDatasheetAudio Multipin Conn Catalog+2

Technical Specifications

Parameters and characteristics for this part

SpecificationMP-4164-150S-C
ColorBlack
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Fastening TypeBayonet Lock
FeaturesDust Cap, Coupling Nut
Ingress ProtectionIP67 - Dust Tight, Waterproof
Mounting FeatureFlange
Number of Positions150
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationKeyed
Primary MaterialMetal
Shell FinishBlack
Shell MaterialAluminum Die Cast
TerminationCrimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 25$ 317.52
NewarkEach 1$ 438.51

Description

General part information

MP-4164-150S-C

150 Position Circular Connector Plug, Female Sockets Crimp
