H6B-AD
ActiveTE Connectivity AMP Connectors

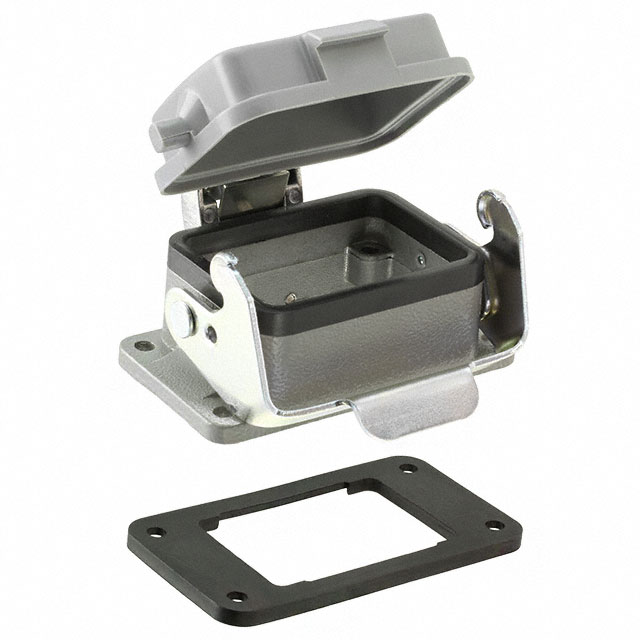

CONN BASE BOTTOM ENTRY 6B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H6B-AD
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM ENTRY 6B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | H6B-AD | H6B Series |
|---|---|---|
| Connector Type | Base - Panel Mount | Hood, Base - Box Mount, Base - Panel Mount, Hood - Coupling |
| Features | Cover | Cover, Cable to Cable |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom, Locking Clip (1) on Hood |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 6B | 6B |
| Size / Dimension [x] | 3.228 in | 2.362 - 3.228 in |
| Size / Dimension [x] | 82 mm | 60 - 82 mm |
| Size / Dimension [y] | 1.799 " | 1.693 - 2.047 in |
| Size / Dimension [y] | 45.7 mm | 43 - 52 mm |
| Size / Dimension [z] | 1.173 in | 1.173 - 2.933 " |
| Size / Dimension [z] | 29.8 mm | 29.8 - 74.5 mm |
| Style | Bottom Entry | Top Entry, Side Entry, Bottom Entry |
| Thread Size | - | PG13.5, M25, PG16, M32, PG21, M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.20 | |
| 16 | $ 13.90 | |||
| 104 | $ 11.61 | |||
| 1000 | $ 9.98 | |||
H6B Series
CONN HOOD TOP ENTRY SZ6B PG13.5
| Part | Connector Type | Lock Location | Thread Size | Ingress Protection | Size | Housing Finish | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Housing Material | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H6B-TG-PG13.5 | Hood | Locking Clip (1) on Base Bottom | PG13.5 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.693 in | 43 mm | 60 mm | 60 mm | 2.362 " | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Top Entry | |
TE Connectivity AMP Connectors H6B-TG-M25 | Hood | Locking Clip (1) on Base Bottom | M25 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.693 in | 43 mm | 60 mm | 60 mm | 2.362 " | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Top Entry | |
TE Connectivity AMP Connectors H6B-SDR-2PG16 | Base - Box Mount | Locking Clip (1) on Base Bottom | PG16 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 2.047 " | 52 mm | 82 mm | 61 mm | 2.402 " | 3.228 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Side Entry | |
TE Connectivity AMP Connectors H6B-AG | Base - Panel Mount | Locking Clip (1) on Base Bottom | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.799 " | 45.7 mm | 82 mm | 29.8 mm | 1.173 in | 3.228 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Bottom Entry | ||
TE Connectivity AMP Connectors H6B-TSH-M32 | Hood | Locking Clip (1) on Base Bottom | M32 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.693 in | 43 mm | 60 mm | 72 mm | 2.835 in | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Side Entry | |
TE Connectivity AMP Connectors H6B-TS-PG13.5 | Hood | Locking Clip (1) on Base Bottom | PG13.5 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.693 in | 43 mm | 60 mm | 60 mm | 2.362 " | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Side Entry | |
TE Connectivity AMP Connectors H6B-AD | Base - Panel Mount | Locking Clip (1) on Base Bottom | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.799 " | 45.7 mm | 82 mm | 29.8 mm | 1.173 in | 3.228 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Bottom Entry | Cover | |
TE Connectivity AMP Connectors H6B-TGH-PG21 | Hood | Locking Clip (1) on Base Bottom | PG21 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.693 in | 43 mm | 60 mm | 72 mm | 2.835 in | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Top Entry | |
TE Connectivity AMP Connectors H6B-TBFH-PG21 | Hood - Coupling | Locking Clip (1) on Hood | PG21 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.772 " | 45 mm | 60 mm | 74.5 mm | 2.933 " | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Bottom Entry | Cable to Cable |
TE Connectivity AMP Connectors H6B-TS-M20 | Hood | Locking Clip (1) on Base Bottom | M20 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.693 in | 43 mm | 60 mm | 60 mm | 2.362 " | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Side Entry | |
TE Connectivity AMP Connectors H6B-TSH-M25 | Hood | Locking Clip (1) on Base Bottom | M25 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.693 in | 43 mm | 60 mm | 72 mm | 2.835 in | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Side Entry | |
TE Connectivity AMP Connectors H6B-TG-M20 | Hood | Locking Clip (1) on Base Bottom | M20 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.693 in | 43 mm | 60 mm | 60 mm | 2.362 " | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Top Entry | |
TE Connectivity AMP Connectors H6B-TG-PG16 | Hood | Locking Clip (1) on Base Bottom | PG16 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.693 in | 43 mm | 60 mm | 60 mm | 2.362 " | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Top Entry | |
TE Connectivity AMP Connectors H6B-TBFH-M25 | Hood - Coupling | Locking Clip (1) on Hood | M25 | IP65 - Dust Tight, Water Resistant | 6B | Powder Coated | 1.772 " | 45 mm | 60 mm | 74.5 mm | 2.933 " | 2.362 in | Aluminum Alloy, Die Cast | Gray | 125 °C | -40 °C | Bottom Entry | Cable to Cable |
Description
General part information
H6B Series
Base - Panel Mount Connector Bottom Entry 6B IP65 - Dust Tight, Water Resistant
