2GK01-73

Active

Carling Technologies

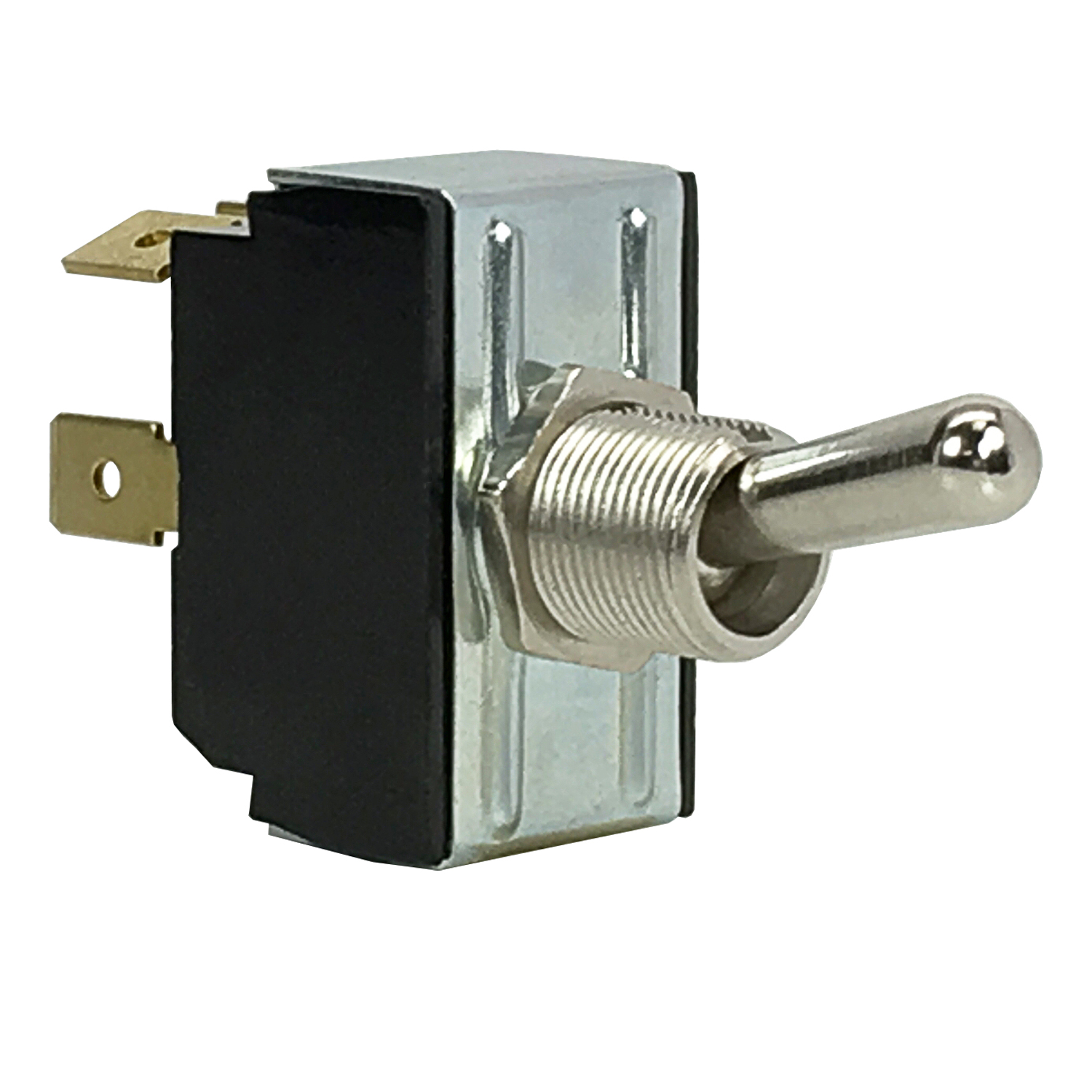

SWITCH TOGGLE DPST 20A 250V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE DPST 20A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2GK01-73	2GK01 Series

Actuator Length [x]	17.45 mm	17.45 mm
Actuator Type	Standard Round	Standard Round
Bushing Thread	15/32-32	15/32-32
Circuit	DPST	DPST
Current Rating (Amps)	20 A	20 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination	Non-Illuminated	Non-Illuminated
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [diameter]	12.7 mm	12.7 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V	250 V

SWITCH TOGGLE DPST 20A 250V

Part	Bushing Thread	Termination Style	Panel Cutout Dimensions [diameter]	Illumination	Circuit	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Electrical Life
Carling Technologies 2GK01-73	15/32-32	Quick Connect - 0.250" (6.3mm)	12.7 mm	Non-Illuminated	DPST	20 A	On-Off	250 V	Standard Round	0 °C	85 °C	17.45 mm	50000 Cycles
Carling Technologies 2GK01-73/2 HEX	15/32-32	Quick Connect - 0.250" (6.3mm)	12.7 mm	Non-Illuminated	DPST	20 A	On-Off	250 V	Standard Round	0 °C	85 °C	17.45 mm	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 12.74

General part information

Toggle Switch DPST Panel Mount
