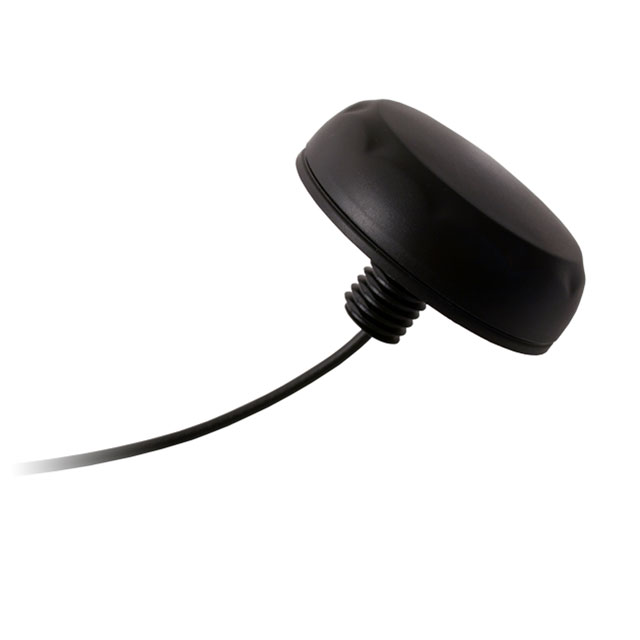

EW-21B-AC-W01

Obsolete

Unictron Technologies Corporation

EXTERNAL WIFI SCREW MOUNT EXTERN

Search across all available documentation for this part.

Obsolete

Unictron Technologies Corporation

EXTERNAL WIFI SCREW MOUNT EXTERN

Technical Specifications

Parameters and characteristics for this part

EXTERNAL WIFI SCREW MOUNT EXTERN

Part	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Applications	Number of Bands	VSWR	Features	Features	Return Loss	Ingress Protection	Antenna Type	Gain	Termination	Frequency Range [Max]	Frequency Range [Min]
Unictron Technologies Corporation EW-21B-AC-W01	Adhesive	0.846 in	21.5 mm	WiFi	Wi-Fi	1	2	1.5 m	Cable	-10 dB	IPX7	Module	5.28 dBi, 6.22 dBi, 6.43 dBi	RP-SMA Male	2.5 GHz	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.45GHz Wi-Fi Module RF Antenna 2.4GHz ~ 2.5GHz 5.28dBi, 6.22dBi, 6.43dBi RP-SMA Male Adhesive
