661-015-364-007

Active

EDAC Inc.

661 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

661-015-364-007

Active

EDAC Inc.

661 SERIES RIGHT ANGLE DUAL D-SU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	661-015-364-007

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	2
Shell Size, Connector Layout [custom]	2
Termination	Solder

661-015 Series

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Mounting Type	Shell Material, Finish	Backset Spacing	Backset Spacing	Current Rating (Amps)	Flange Feature	Number of Rows	Connector Style	Contact Type	Color	Number of Positions	Features	Contact Finish Thickness	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Contact Material	Connector Type	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 661-015-264-030	85 °C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	8.08 mm	0.318 "	3 A	Housing/Shell (Unthreaded)	2	D-Sub - Stacked	Signal	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Flash	Solder	2	2	Gold	Brass	Male Pins Plug	Polyester Thermoplastic
EDAC Inc. 661-015-364-041	85 °C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	8.08 mm	0.318 "	3 A	Housing/Shell (M3)	2	D-Sub - Stacked	Signal	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded		Solder	2	2	Gold	Brass	Male Pins Plug	Polyester Thermoplastic	15 µin	0.38 µm
EDAC Inc. 661-015-664-003	85 °C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	8.08 mm	0.318 "	3 A	Female Screwlock (4-40) Mating Side	2	D-Sub - Stacked	Signal	Black	15	Grounding Indents Mounting Brackets Shielded		Solder	2	2	Gold	Brass	Male Pins Plug	Polyester Thermoplastic	30 Áin	0.76 Ám
EDAC Inc. 661-015-364-007	85 °C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	8.08 mm	0.318 "	3 A	Housing/Shell (Unthreaded)	2	D-Sub - Stacked	Signal	Black	15	Grounding Indents Mounting Brackets Shielded		Solder	2	2	Gold	Brass	Male Pins Plug	Polyester Thermoplastic	15 µin	0.38 µm
EDAC Inc. 661-015-364-048	85 °C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	8.08 mm	0.318 "	3 A	Housing/Shell (4-40)	2	D-Sub - Stacked	Signal	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded		Solder	2	2	Gold	Brass	Male Pins Plug	Polyester Thermoplastic	15 µin	0.38 µm
EDAC Inc. 661-015-664-04A	85 °C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	8.08 mm	0.318 "	3 A	Housing/Shell (M3)	2	D-Sub - Stacked	Signal	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded		Solder	2	2	Gold	Brass	Male Pins Plug	Polyester Thermoplastic	30 Áin	0.76 Ám
EDAC Inc. 661-015-664-038	85 °C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	8.08 mm	0.318 "	3 A	Housing/Shell (4-40)	2	D-Sub - Stacked	Signal	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded		Solder	2	2	Gold	Brass	Male Pins Plug	Polyester Thermoplastic	30 Áin	0.76 Ám
EDAC Inc. 661-015-664-045	85 °C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	8.08 mm	0.318 "	3 A	Housing/Shell (4-40)	2	D-Sub - Stacked	Signal	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded		Solder	2	2	Gold	Brass	Male Pins Plug	Polyester Thermoplastic	30 Áin	0.76 Ám
EDAC Inc. 661-015-264-04C	85 °C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	8.08 mm	0.318 "	3 A	Housing/Shell (M3)	2	D-Sub - Stacked	Signal	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Flash	Solder	2	2	Gold	Brass	Male Pins Plug	Polyester Thermoplastic
EDAC Inc. 661-015-264-031	85 °C	-55 °C	UL94 V-0	Panel Mount Right Angle Through Hole	Nickel Plated Steel	8.08 mm	0.318 "	3 A	Housing/Shell (M3)	2	D-Sub - Stacked	Signal	Black	15	Board Lock Grounding Indents Mounting Brackets Shielded	Flash	Solder	2	2	Gold	Brass	Male Pins Plug	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 8.18

Description

General part information

661-015 Series

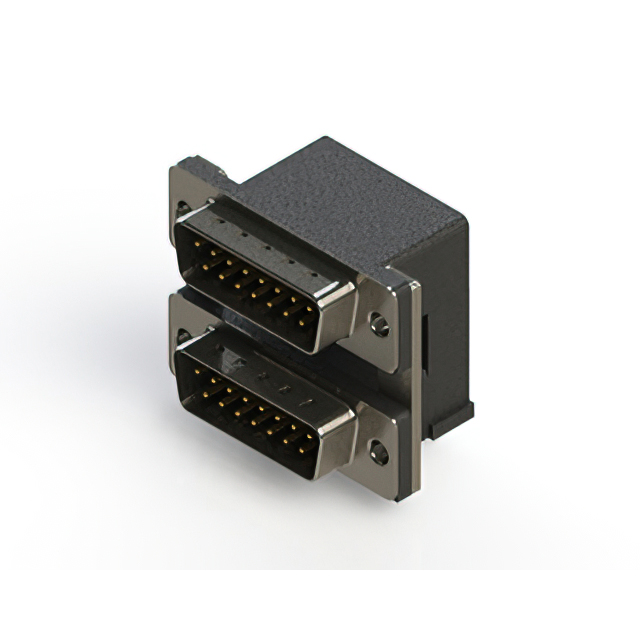

15, 15 Position D-Sub - Stacked Plug, Male Pins Connector
