3180-3PG-521
ActiveConxall/Switchcraft

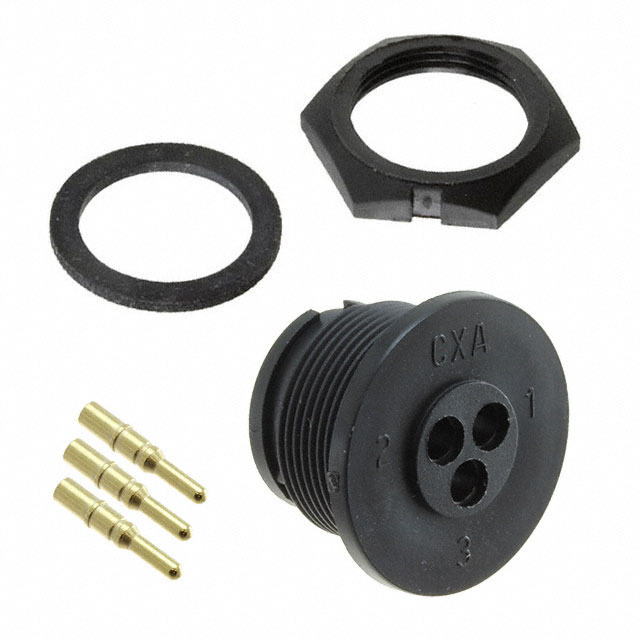

CONN PLUG MALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3180-3PG-521
ActiveConxall/Switchcraft
CONN PLUG MALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3180-3PG-521 | 3180-3P Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening | - | 8.13 mm |
| Cable Opening [Max] [diameter] | 5.84 mm | 5.84 - 6.86 mm |
| Cable Opening [Max] [diameter] | 0.23 in | 0.23 - 0.32 in |
| Cable Opening [Min] [diameter] | 5.33 mm | 5.33 - 7.62 mm |
| Cable Opening [Min] [diameter] | 0.21 in | 0.21 - 0.3 in |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
3180-3P Series
CONN PLUG MALE 3POS GOLD CRIMP
| Part | Termination | Mounting Type | Contact Finish - Mating | Shielding | Features | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Backshell Material, Plating | Contact Material | Orientation | Primary Material | Voltage Rating | Ingress Protection | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Connector Type | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 3180-3PG-518 | Crimp | Free Hanging (In-Line) | Gold | Unshielded | Backshell, Cable Clamp | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | Nylon, Polyamide (PA) | Brass | Keyed | Plastic | 600 V | Weathertight | Bayonet Lock | -40 °C | 115 °C | Black | Male Pins, Plug | |||||||
Conxall/Switchcraft 3180-3PG-515 | Crimp | Free Hanging (In-Line) | Gold | Unshielded | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Brass | Keyed | Plastic | 600 V | Weathertight | Bayonet Lock | -40 °C | 115 °C | Black | Male Pins, Plug | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||||
Conxall/Switchcraft 3180-3PG-321 | Crimp | Free Hanging (In-Line) | Gold | Unshielded | Backshell | Nylon, Polyamide (PA) | Brass | Keyed | Plastic | 600 V | Weathertight | Bayonet Lock | -40 °C | 115 °C | Black | Male Pins, Plug | 5.33 mm | 5.84 mm | 0.21 in | 0.23 in | |||||||
Conxall/Switchcraft 3180-3PG-315 | Crimp | Free Hanging (In-Line) | Gold | Unshielded | Backshell | Nylon, Polyamide (PA) | Brass | Keyed | Plastic | 600 V | Weathertight | Bayonet Lock | -40 °C | 115 °C | Black | Male Pins, Plug | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||||
Conxall/Switchcraft 3180-3PG-530 | Crimp | Free Hanging (In-Line) | Gold | Unshielded | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Brass | Keyed | Plastic | 600 V | Weathertight | Bayonet Lock | -40 °C | 115 °C | Black | Male Pins, Plug | 7.62 mm | 0.3 in | 0.32 in | 8.13 mm | |||||||
Conxall/Switchcraft 3180-3PG-524 | Crimp | Free Hanging (In-Line) | Gold | Unshielded | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Brass | Keyed | Plastic | 600 V | Weathertight | Bayonet Lock | -40 °C | 115 °C | Black | Male Pins, Plug | 6.1 mm | 6.86 mm | 0.24 in | 0.27 in | |||||||
Conxall/Switchcraft 3180-3PG-318 | Crimp | Free Hanging (In-Line) | Gold | Unshielded | Backshell | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | Nylon, Polyamide (PA) | Brass | Keyed | Plastic | 600 V | Weathertight | Bayonet Lock | -40 °C | 115 °C | Black | Male Pins, Plug | |||||||
Conxall/Switchcraft 3180-3PG-521 | Crimp | Free Hanging (In-Line) | Gold | Unshielded | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Brass | Keyed | Plastic | 600 V | Weathertight | Bayonet Lock | -40 °C | 115 °C | Black | Male Pins, Plug | 5.33 mm | 5.84 mm | 0.21 in | 0.23 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 9.17 | |
Description
General part information
3180-3P Series
3 Position Circular Connector Plug, Male Pins Crimp
