Description
General part information
FMCA2902-150CM

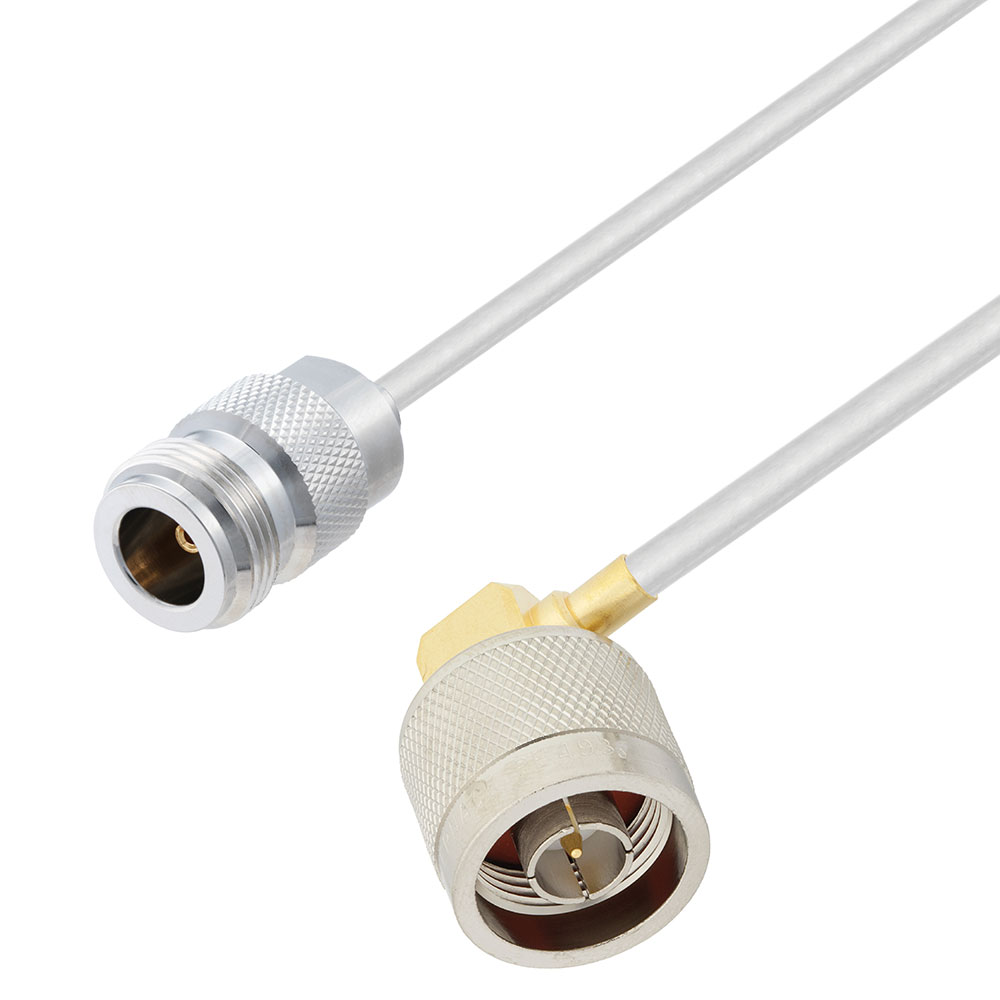

Cable Assembly Coaxial N-Type to N-Type Hand Formable .141 59.1" (1.5m) 4.9'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2902-150CM |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.141 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 11 GHz |
| Length | 59.1 in |
| Length (ft) | 4.9 ft |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
