9936 0601000

Active

Belden Inc.

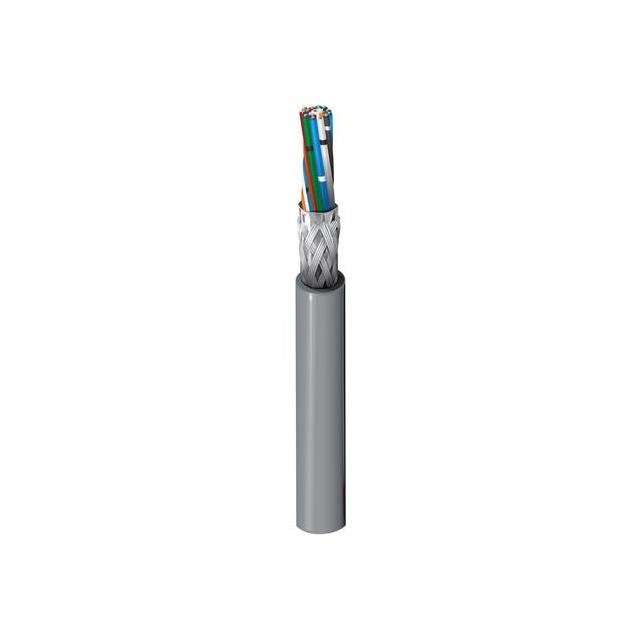

CABLE 15COND 24AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 15COND 24AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9936 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.345 "
Jacket (Insulation) Diameter [diameter]	8.76 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	24 AWG

Part	Conductor Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Features	Shield Material	Number of Conductors	Wire Gauge	Jacket (Insulation) Material	Ratings	Jacket Color	Conductor Insulation	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 9936 0601000	Copper Tinned	65 % 100 %	-30 ░C	80 C	0.889 mm	0.035 in	1000 ft	304.8 m	Drain Wire	Aluminum Copper Tinned	15	24 AWG	Poly-Vinyl Chloride (PVC)	UL Style 2919	Chrome	Foam Polyethylene (FPE)	Braid Foil	0.345 "	8.76 mm	Computer	Multi-Conductor	32 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.75

General part information

15 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Braid 1000.0' (304.8m)
