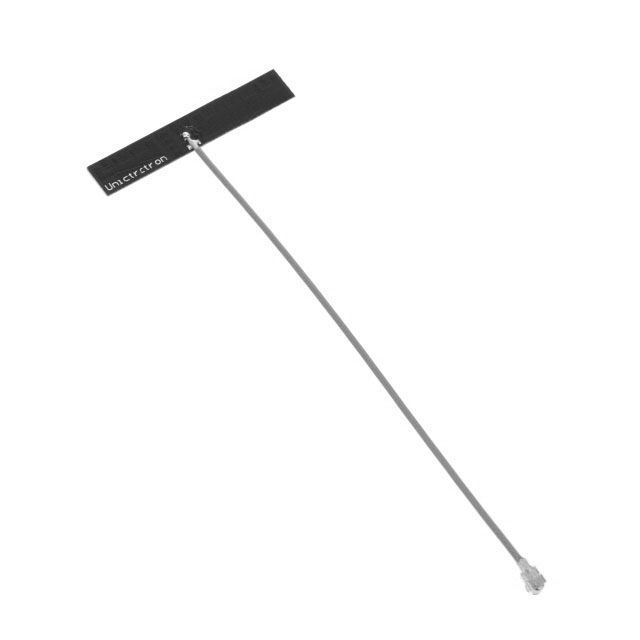

H2B1PD1A1C385L

Active

Unictron Technologies Corporation

UNICTRON AA222 - DUAL BAND WIFI,

Search across all available documentation for this part.

Active

Unictron Technologies Corporation

UNICTRON AA222 - DUAL BAND WIFI,

Technical Specifications

Parameters and characteristics for this part

UNICTRON AA222 - DUAL BAND WIFI,

Part	Mounting Type	Features	Features	Termination	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Frequency (Center/Band)	Applications	VSWR	Number of Bands	Gain	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Frequency Range [Min]	Frequency Range [Max]	Antenna Type
Unictron Technologies Corporation H2B1PD1A1C385L	Adhesive	Cable	100 mm	IPEX MHF	0.5 mm	0.02 in	WiFi	2.45 GHz, 5.4 GHz	802.11b, 802.11g, 802.11n	2	2	3 dBi, 4.4 dBi	4 GHz	2 GHz	3 GHz	2.4 GHz, 4.9 GHz	2.5 GHz, 5.9 GHz	PCB Trace

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 802.11b/g/n PCB Trace IPEX MHF Adhesive
