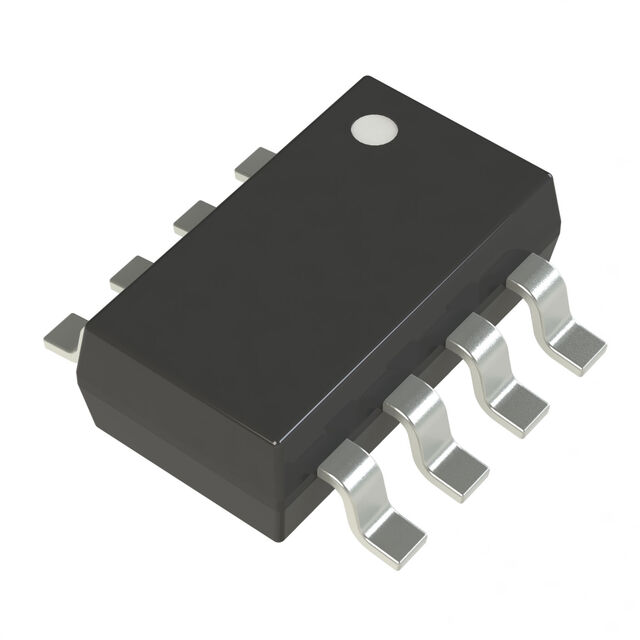

RS0102YH8
ActiveRunic Technology
IC TRANSLATOR BIDIR SOT23-8
Deep-Dive with AI
Search across all available documentation for this part.
RS0102YH8
ActiveRunic Technology
IC TRANSLATOR BIDIR SOT23-8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RS0102YH8 |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 2 |
| Data Rate | 24 Mbps |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Drain, Push-Pull |
| Package / Case | SOT-23-8 |
| Supplier Device Package | SOT-23-8 |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 5.5 V |
| Voltage - VCCA [Min] | 1.65 V |
| Voltage - VCCB [Max] | 5.5 V |
| Voltage - VCCB [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.51 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.55 | |||
| 25 | $ 0.51 | |||
| 100 | $ 0.41 | |||
| 250 | $ 0.38 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.25 | |||
| Tape & Reel (TR) | 3000 | $ 0.23 | ||
| 6000 | $ 0.21 | |||
| 15000 | $ 0.20 | |||
| 30000 | $ 0.19 | |||
Description
General part information
RS0102YH8
Voltage Level Translator Bidirectional 1 Circuit 2 Channel 24Mbps SOT-23-8
Documents
Technical documentation and resources
No documents available
