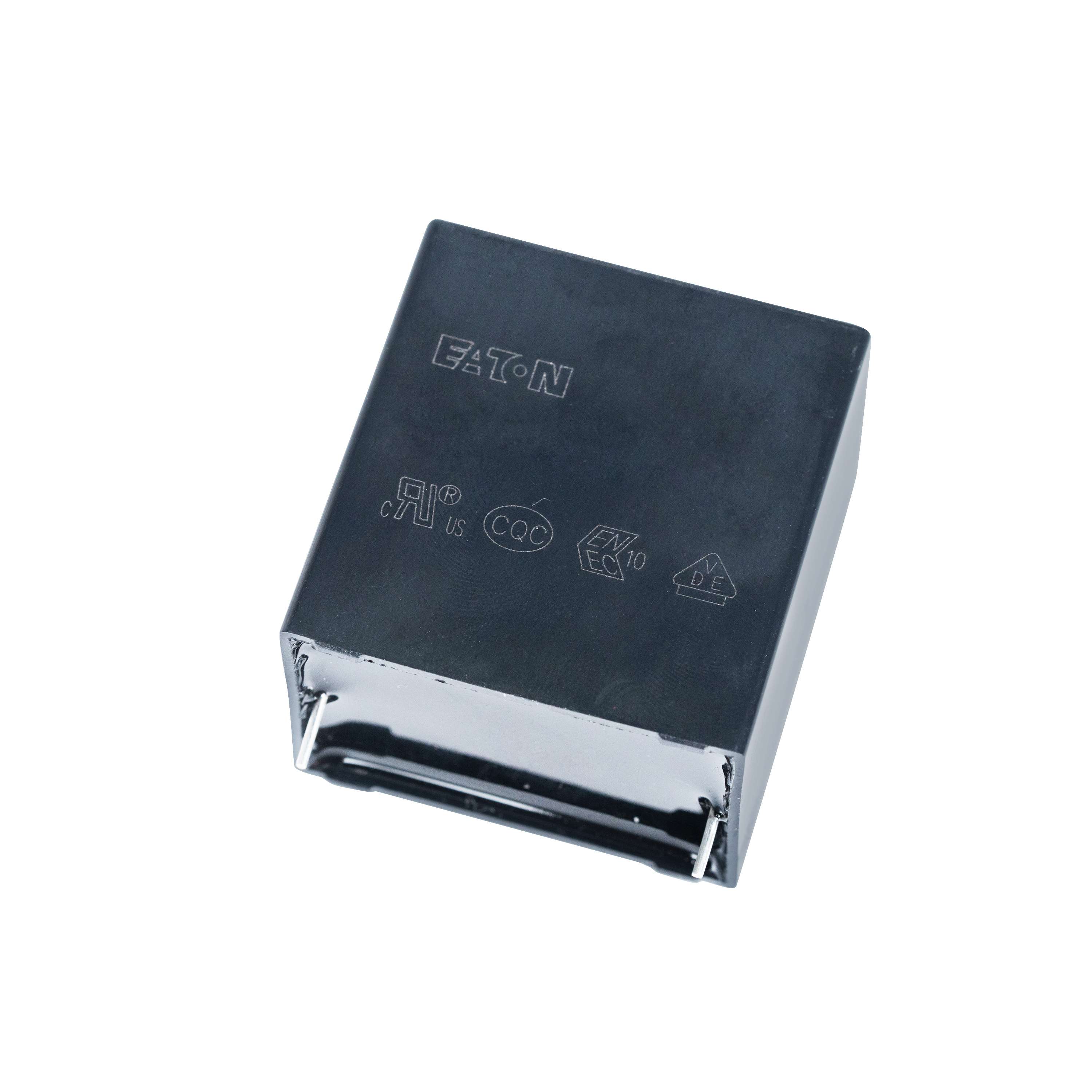

Specification	EFX1S48K474E022LH

Applications	RFI Suppression, EMI
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	0.984 in
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension Length	1.654 in
Size / Dimension Width	0.512 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	480 VAC
Voltage Rating - DC	1 kV
