FMCA2606/BL-72
ActiveFairview Microwave
COAX CBL 1.0/2.3 TO 1.0/2.3 6'
FMCA2606/BL-72
ActiveFairview Microwave
COAX CBL 1.0/2.3 TO 1.0/2.3 6'
Description
General part information
FMCA2606/BL-72

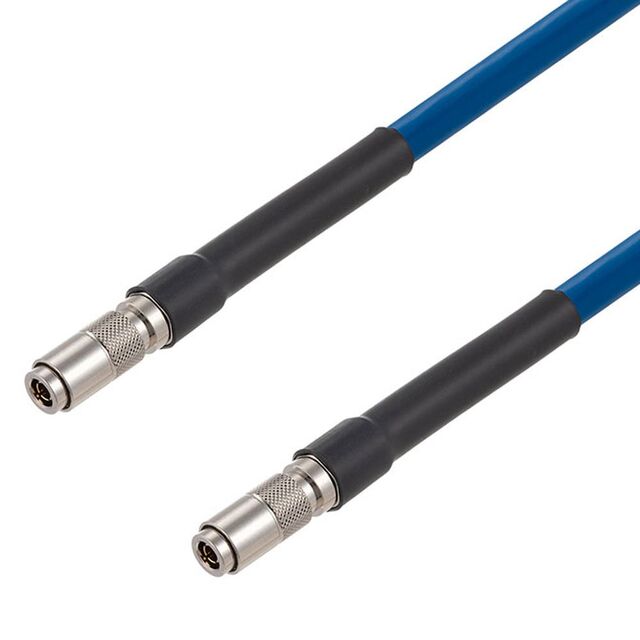

Cable Assembly Coaxial 1.0/2.3 to 1.0/2.3 Belden 4694R 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2606/BL-72 |
|---|---|
| 1st Connector | 1.0/2.3 Plug |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 1 mm |
| 1st Connector Dimension (2) | 2.3 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size (Dimension 1) | 1 mm, 1 |
| 1st Connector Size (Dimension 2) | 2.3 mm, 2.3 |
| 1st Connector Type | Plug |
| 1st Contact Gender | Male |
| 2nd Connector | 1.0/2.3 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 4694R |
| Color | Blue |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 12 Gbps |
| Length | 72 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | 1.0/2.3 to 1.0/2.3 |
