PA5449.682NLT
ActivePulse Electronics
FIXED IND 6.8UH 7A 36.8MOHM SMD
PA5449.682NLT
ActivePulse Electronics
FIXED IND 6.8UH 7A 36.8MOHM SMD
Description
General part information
PA5449.682NLT

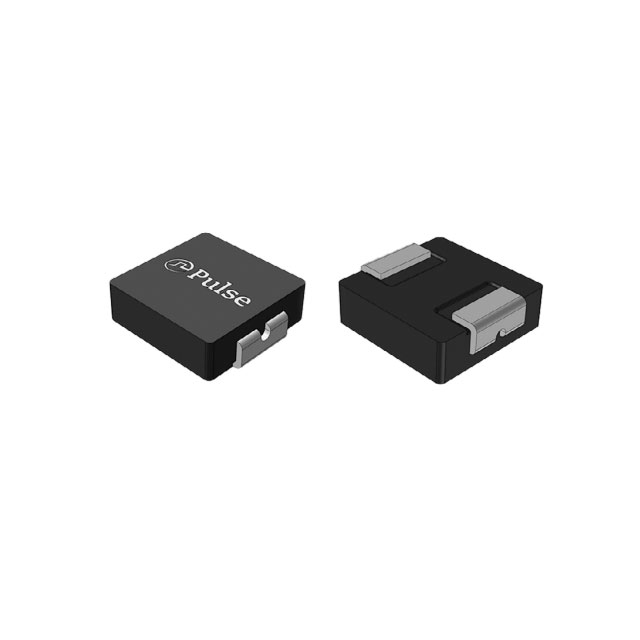

6.8 µH Shielded Molded Inductor 7 A 36.8mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA5449.682NLT |
|---|---|
| Current - Saturation (Isat) | 8 A |
| Current Rating | 7 A |
| DC Resistance (DCR) (Max) | 36.8 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.346 in |
| Size / Dimension Width | 0.323 in |
| Tolerance | 20 % |
| Type | Molded |
