T4171010405-002
ActiveTE Connectivity AMP Connectors

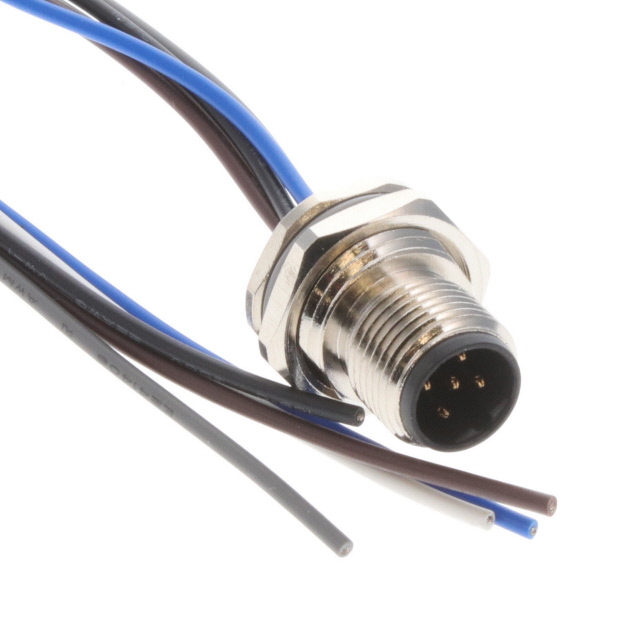

CIRC CBL 5POS PLUG TO WIRE 1.64'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4171010405-002
ActiveTE Connectivity AMP Connectors
CIRC CBL 5POS PLUG TO WIRE 1.64'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4171010405-002 | T41710 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Panel Mount | Panel Mount |
| 1st Connector Number of Positions | 5 | 5 - 8 |
| 1st Connector Number of Positions | - | 12 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Number of Positions Loaded | - | 3 - 4 |
| 1st Connector Orientation | B | A, B, D |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Plug | Plug, Receptacle |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Applications | - | Industrial |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) |
| Cable Type | Individual | Individual |
| Color | Multiple | Multiple, Silver |
| Connector Type | - | Receptacle, Male Pins |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness - Mating | - | Flash |
| Contact Material | - | Copper Alloy |
| Current Rating (Amps) | - | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | - | Nylon, Polyamide (PA) |
| Length | - | 200 mm |
| Length [x] | 1.64 ft | 0.66 - 1.64 ft |
| Length [x] | 500 mm | 500 mm |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Number of Positions | - | 2 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Orientation | - | B, A, D |
| Primary Material | - | Metal |
| Shell Finish | - | Nickel |
| Shell Material | - | Copper Alloy |
| Shell Size - Insert | - | M12-3, M12-2, M12-5 |
| Shielding | - | Shielded, Unshielded |
| Termination | - | Wire Leads |
| Usage | Industrial Environments | Industrial Environments |
| Voltage Rating | - | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.60 | |
| 10 | $ 14.30 | |||
| 25 | $ 13.92 | |||
| 50 | $ 13.23 | |||
| 100 | $ 11.94 | |||
| 250 | $ 11.86 | |||
| 500 | $ 10.34 | |||
T41710 Series
CIRC CBL 5POS PLUG TO WIRE 0.66'
| Part | Assembly Configuration | Ingress Protection | 1st Connector Orientation | 1st Connector Shell Size - Insert | 1st Connector Gender | 1st Connector Type | Length | Length [x] | 1st Connector Number of Positions Loaded | Color | 1st Connector Number of Positions | Usage | 1st Connector Mounting Type | Cable Type | Cable Material | 2nd Connector Type | Length [x] | 1st Connector Number of Positions Loaded | Contact Material | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Insert Material | Connector Type | Voltage Rating | Shielding | Orientation | Mounting Feature | Termination | Contact Finish - Mating | Current Rating (Amps) | Contact Finish Thickness - Mating | Shell Size - Insert | Shell Material | Applications | Material Flammability Rating | Number of Positions | 1st Connector Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4171010004-001 | Standard | IP67 - Dust Tight, Waterproof | A | M12 | Male Pins | Plug | 200 mm | 0.66 ft | 4 | Multiple | 5 | Industrial Environments | Panel Mount | Individual | Polyvinyl Chloride (PVC) | Wire Leads | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171010405-002 | Standard | IP67 - Dust Tight, Waterproof | B | M12 | Male Pins | Plug | 1.64 ft | Multiple | 5 | Industrial Environments | Panel Mount | Individual | Polyvinyl Chloride (PVC) | Wire Leads | 500 mm | All | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171010405-001 | Standard | IP67 - Dust Tight, Waterproof | B | M12 | Male Pins | Plug | 200 mm | 0.66 ft | Multiple | 5 | Industrial Environments | Panel Mount | Individual | Polyvinyl Chloride (PVC) | Wire Leads | All | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171010503-001 | Standard | IP67 - Dust Tight, Waterproof | D | M12 | Male Pins | Plug | 200 mm | 0.66 ft | 3 | Multiple | 5 | Industrial Environments | Panel Mount | Individual | Polyvinyl Chloride (PVC) | Wire Leads | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171010403-001 | IP67 - Dust Tight, Waterproof | Silver | Copper Alloy | Nickel | 85 °C | -40 °C | Metal | Nylon, Polyamide (PA) | Male Pins, Receptacle | 250 VDC | Shielded | B | Bulkhead - Front Side Nut | Wire Leads | Gold | 4 A | Flash | M12-3 | Copper Alloy | Industrial | UL94 V-0 | ||||||||||||||||||
TE Connectivity AMP Connectors T4171010504-001 | Standard | IP67 - Dust Tight, Waterproof | D | M12 | Male Pins | Plug | 200 mm | 0.66 ft | 4 | Multiple | 5 | Industrial Environments | Panel Mount | Individual | Polyvinyl Chloride (PVC) | Wire Leads | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171010002-001 | IP67 - Dust Tight, Waterproof | Silver | Copper Alloy | Nickel | 85 °C | -40 °C | Metal | Nylon, Polyamide (PA) | Male Pins, Receptacle | 250 VDC | Shielded | A | Bulkhead - Front Side Nut | Wire Leads | Gold | 4 A | Flash | M12-2 | Copper Alloy | Industrial | UL94 V-0 | 2 | |||||||||||||||||
TE Connectivity AMP Connectors T4171030012-001 | Standard | IP67 - Dust Tight, Waterproof | A | M12 | Male Pins | Receptacle | 200 mm | 0.66 ft | Multiple | Industrial Environments | Panel Mount | Individual | Wire Leads | All | Unshielded | 12 | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171010003-001 | Standard | IP67 - Dust Tight, Waterproof | A | M12 | Male Pins | Plug | 200 mm | 0.66 ft | 3 | Multiple | 5 | Industrial Environments | Panel Mount | Individual | Polyvinyl Chloride (PVC) | Wire Leads | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171010505-001 | IP67 - Dust Tight, Waterproof | Silver | Copper Alloy | Nickel | 85 °C | -40 °C | Metal | Nylon, Polyamide (PA) | Male Pins, Receptacle | 60 VDC | Shielded | D | Bulkhead - Front Side Nut | Wire Leads | Gold | 4 A | Flash | M12-5 | Copper Alloy | Industrial | UL94 V-0 | ||||||||||||||||||
TE Connectivity AMP Connectors T4171020008-001 | Standard | IP67 - Dust Tight, Waterproof | A | M12 | Male Pins | Receptacle | 200 mm | 0.66 ft | Multiple | 8 positions | Industrial Environments | Panel Mount | Individual | Wire Leads | All | Unshielded | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171010005-001 | Standard | IP67 - Dust Tight, Waterproof | A | M12 | Male Pins | Plug | 200 mm | 0.66 ft | Multiple | 5 | Industrial Environments | Panel Mount | Individual | Polyvinyl Chloride (PVC) | Wire Leads | All | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171010005-002 | Standard | IP67 - Dust Tight, Waterproof | A | M12 | Male Pins | Plug | 1.64 ft | Multiple | 5 | Industrial Environments | Panel Mount | Individual | Polyvinyl Chloride (PVC) | Wire Leads | 500 mm | All | |||||||||||||||||||||||
TE Connectivity AMP Connectors T4171010504-002 | Standard | IP67 - Dust Tight, Waterproof | D | M12 | Male Pins | Plug | 1.64 ft | 4 | Multiple | 5 | Industrial Environments | Panel Mount | Individual | Polyvinyl Chloride (PVC) | Wire Leads | 500 mm |
