ST-DB15-HD-F-R-FT

Active

SchmalzTech, LLC

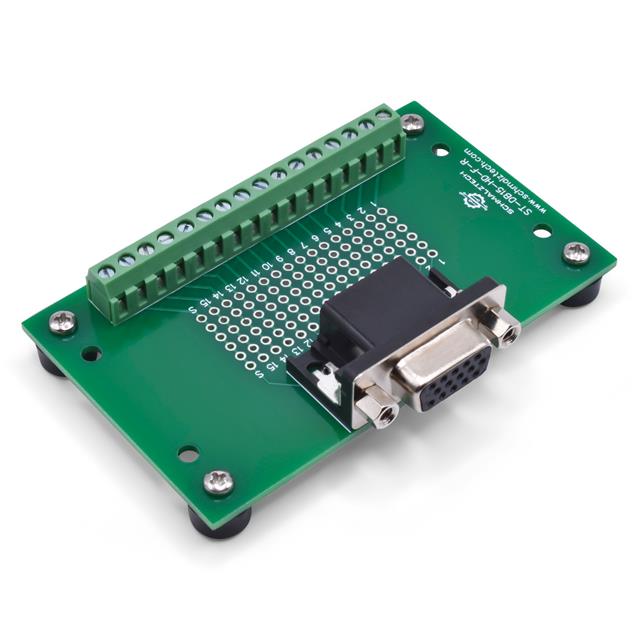

DB15 HD FEMALE BREAKOUT BOARD

Search across all available documentation for this part.

Active

SchmalzTech, LLC

DB15 HD FEMALE BREAKOUT BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

DB15 HD MALE BREAKOUT BOARD

Part	Pitch [x]	Pitch [x]	Package Accepted	Number of Positions	Proto Board Type
SchmalzTech, LLC ST-DB15-HD-M-R-DIN	2.54 mm	0.1 in	DB15	15	Connector to Terminal Block
SchmalzTech, LLC ST-DB15-HD-M-R-FT	2.54 mm	0.1 in	DB15	15	Connector to Terminal Block
SchmalzTech, LLC ST-DB15-HD-F-R-FT	2.54 mm	0.1 in	DB15	15	Connector to Terminal Block

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DB15 HD FEMALE BREAKOUT BOARD

Technical documentation and resources
