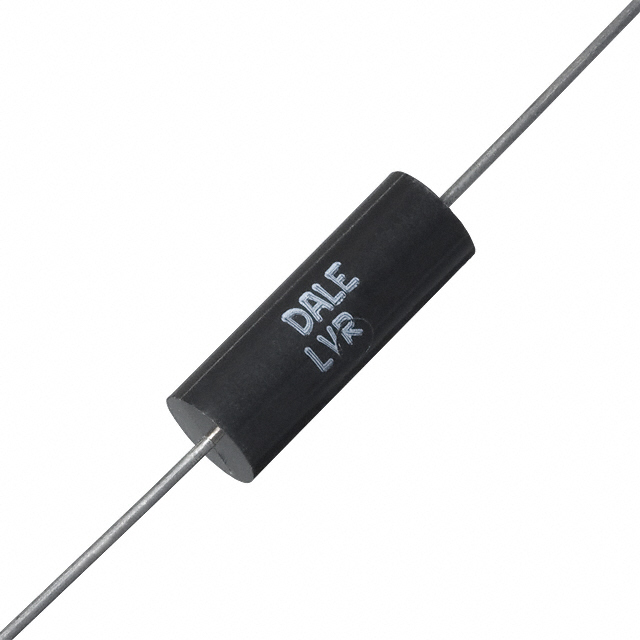

LVR055L000FS73
ObsoleteVishay Dale
RES 0.005 OHM 1% 5W AXIAL WW
LVR055L000FS73
ObsoleteVishay Dale
RES 0.005 OHM 1% 5W AXIAL WW
Description
General part information
LVR055L000FS73
5 mOhms ±1% 5W Through Hole Resistor Axial Current Sense, Moisture Resistant Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | LVR055L000FS73 |
|---|---|
| Composition | Wirewound |
| Features | Moisture Resistant, Current Sense |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 5 W |
| Resistance | 5 mOhms |
| Size / Dimension Diameter | 0.33 in |
| Size / Dimension Length | 0.925 in |
| Temperature Coefficient | 650 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
