9513 0605000

Active

Belden Inc.

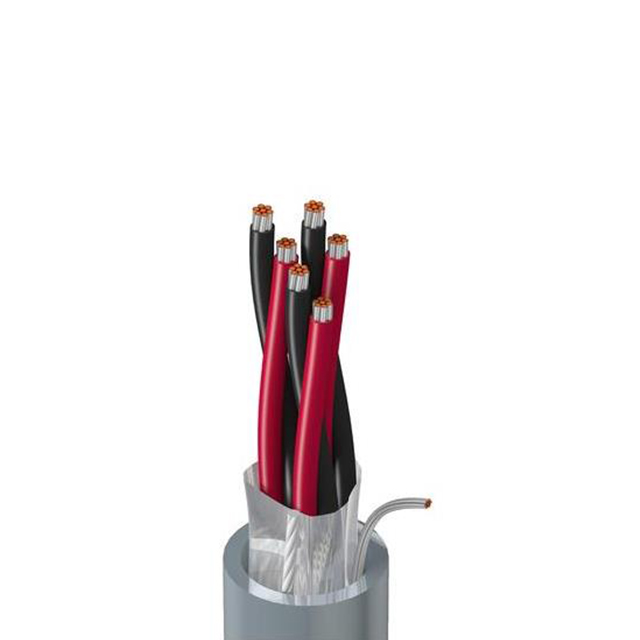

MULTI-PAIR 6COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9513 0605000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire, Rip Cord, Flame Retardant
Jacket (Insulation) Diameter [diameter]	8.31 mm
Jacket (Insulation) Diameter [diameter]	0.327 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Number of Conductors	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Insulation	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Voltage	Wire Gauge	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket Color	Shield Type	Shield Material	Number of Conductors	Jacket (Insulation) Material	Features
Belden Inc. 9513 0605000	Poly-Vinyl Chloride (PVC)	Copper Tinned	8.31 mm	0.327 in	-30 ░C	105 ░C	100 %	7	30 AWG	UL Style 2464	300 V	22 AWG	Instrumentation	1.067 mm	0.042 in	Multi-Pair	Chrome	Foil	Aluminum	6	Poly-Vinyl Chloride (PVC)	Drain Wire Flame Retardant Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 2.60

General part information

6 (3 Pair) Conductor Multi-Pair Cable Chrome 22 AWG Foil 5000' (1524.0m)
