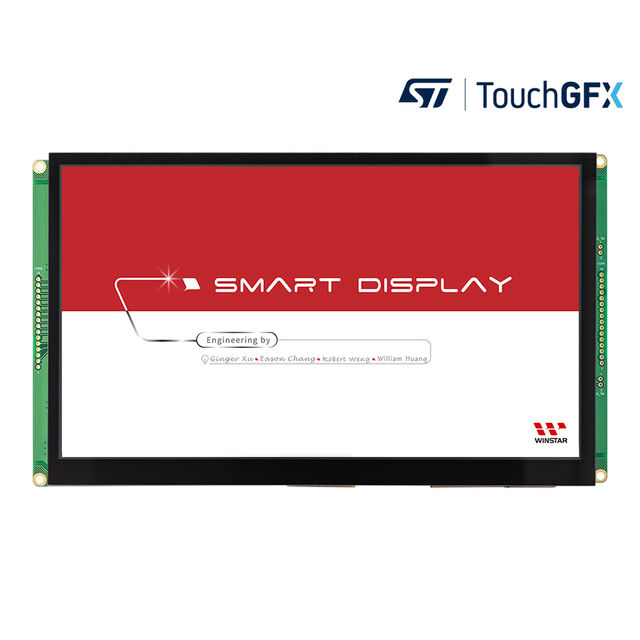

WL0F00101000JGAACSA00
ActiveWinstar Display
10.1" CAN BUS 1024X600 CAP TOUCH
WL0F00101000JGAACSA00
ActiveWinstar Display
10.1" CAN BUS 1024X600 CAP TOUCH
Description
General part information
WL0F00101000JGAACSA00
Capacitive Graphic LCD Display Module Red, Green, Blue (RGB) TFT - Color CAN 10.1" (256.54mm) 1024 x 600
Technical Specifications
Parameters and characteristics for this part
| Specification | WL0F00101000JGAACSA00 |
|---|---|
| Background Color | White |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | STM32F746 |
| Diagonal Screen Size | 10.1 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch Height | 0.21 mm |
| Dot Pitch Width | 0.22 mm |
| Dot Pixels (Horizontal) | 1024 pixels |
| Dot Pixels (Vertical) | 600 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | CAN |
| Touchscreen | Capacitive |
| Viewing Area Height | 126.28 mm |
| Viewing Area Width | 223.72 mm |
